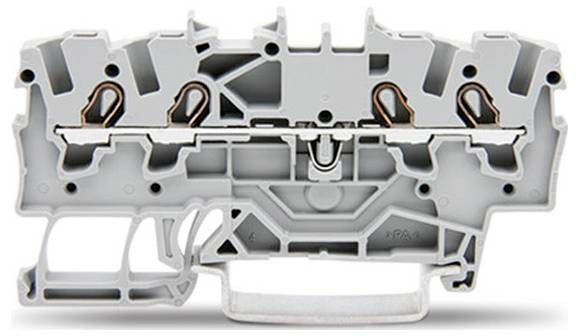

WAGO 2001-1401 Continuity Spring-loaded connector Grey 100 pc(s)

4-conductor through terminal; 1.5 mm²; suitable for applications Ex e II; lateral and central labeling; for mounting rails 35 x 15 and 35 x 7.5; push-in CAGE CLAMP®; 1.50 mm²; gray through terminal 2001 series with actuation toolThis through terminal (article number 2001-1401) is the main focus of a simple and safe connection. This through terminal requires a stripping length between 9 and 11 mm for the wire connection. Whether in industrial applications or in building applications: The continuity terminal blocks allow you to quickly and securely connect electrical conductors together. Depending on the version, they are suitable for classic through-wiring or distribution of potential. This product uses push-in CAGE CLAMP® technology. Push-in CAGE CLAMP® is the maintenance-free universal connection for all types of conductors with the additional benefit of direct plug-in: Push-in. Rigid conductors as well as fine-wired conductors with wire-end sleeves can be plugged directly without tools. Pre-treatment of the conductors, e.g. by crimping wire-end sleeves, is not necessary. The dimensions are in width x height x depth (4.2 x 69.9 x 39.5) mm. Depending on the type of conductor, this through terminal is made for conductor cross-sections from 0.25 mm² to 2.5 mm². This through terminal block is actuated by an actuating tool. TopJob® S terminal blocks offer more than just a secure electrical connection in various industrial applications and modern building installations. For every application, they offer the suitable actuating options: Lever, push-button or actuation opening. This product is suitable for certain hazardous applications (see product data sheet).
