Name: WAGO 2006-1681/1000-429-25 Fuse terminal 7.50 mm Pull spring Grey 25 pc(s) Package
Brand: WAGO
SKU: 652015

Circuit symbol for an LED in series with a resistor, both connected in parallel with another resistor. Current flow from - to +.

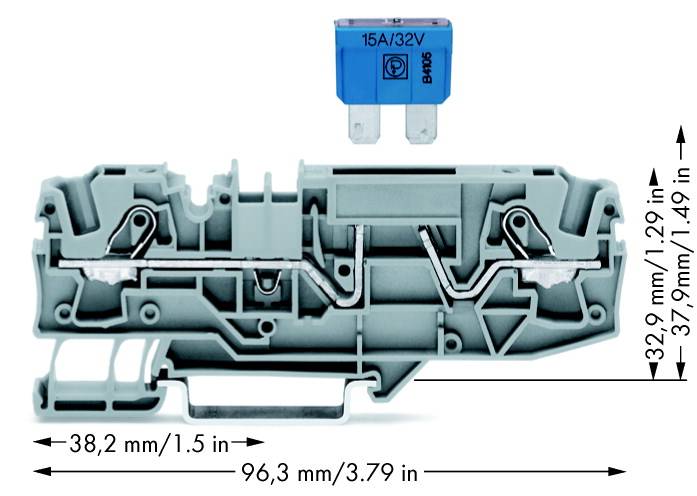

A blue-grey electrical fuse module with displayed dimensions. At the top is a blue-marked fuse labelled '15A/32V'.

A grey, technical component with various wires and a blue resistor in the centre.

1/3

Packaging type

Package

Product type

Fuse terminal

Connection

Pull spring

Content

25 pc(s)

Features

+ swivelling fuse holder

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

2-wire fuse clip for car fuses

2006-1681/1000-429
Industrial packaging, pack of 25
This text is machine translated.

Technical specifications

Packaging type: Package

Product type: Fuse terminal

Features: + swivelling fuse holder

Connection: Pull spring

Clamp width: 7.50 mm

No. of rows: 1

Pins per row: 2

Number of pins: 2

Factory colour: Grey

Stripping length (max.): 13 mm

Manufacturer part #: 2006-1681/1000-429-25

Content: 25 pc(s)

Industrial packaging: Yes

Type: 2006-1681/1000-429

Height: 32.90 mm

Length: 7.50 mm

Contamination level: 3

Weight: 19.642 g

Connector colour: Grey

UKCA: not relevant
