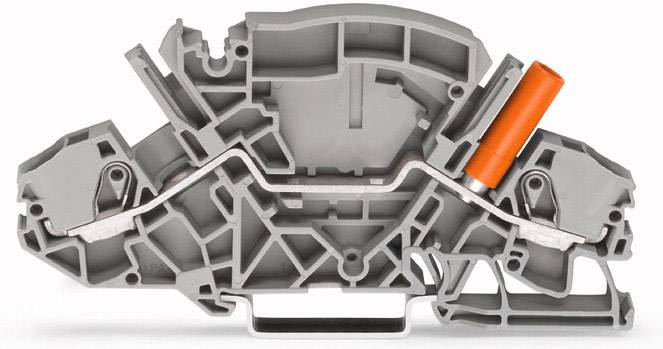

Image similar
WAGO 2007-8801/043-000 Dual port continuity 8 mm Push-in connector Grey 20 pc(s) Piece
Packaging type
Piece
Product type
Dual port continuity
Connection
Push-in connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Dualport continuity 2007-8801/043-000
- 2007-8801/043-000
Technical specifications
- Packaging type
Piece
- Product type
Dual port continuity
- Features
+ CAGE CLAMP®
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
10 mm²
- Clamp width
8 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
500 V
- Min. stripping length
13 mm
- Stripping length (max.)
15 mm
- Manufacturer part #
2007-8801/043-000
- Content
20 pc(s)
- Type
2007-8801/043-000
- Dim
(L x W x H) 99.60 x 8 x 46.80 mm
- Width
8 mm
- Height
46.80 mm
- Length
99.60 mm
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1931561 WAGO 2007-8801/043-000 Dual port continuity 8 mm Push-in connector Grey 20 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1931561 WAGO 2007-8801/043-000 Dual port continuity 8 mm Push-in connector Grey 20 pc(s) Piece
