WAGO 2273-203-1 2273 Screw terminal flexible: - fixed: 0.5-2.5 mm² Number of pins: 3 1 pc(s) Transparent, Orange
EAN:
Part number:
Item no:
Nominal current - rounded value
24 A
Series
2273
Cross section (inflexible) (max.)
2.5 mm²
Cross section (inflexible) (min.)
0.5 mm²
Number of pins
3
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
15
-
€ 0.19
45
5% = € 0.01
€ 0.18
75
11% = € 0.02
€ 0.17
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 15
Total (€ 0.19 / piece)
€ 0.31
-39 %
€
Highlights & Details
COMPACT PUSH WIRE® connector for junction boxes
- 51% less space required
Technical specifications
- VERB.DOSENKL. 3X2,5MM2 TRANSP./ORANG
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Content
1 pc(s)
- Dim
(L x W) 16.7 mm x 14 mm
- Manufacturer part #
2273-203-1
- Factory colour
Transparent
Orange
- Length
16.7 mm
- Width
14 mm
- Connector clip features
Test window
- Connection
Pull spring
- Series
2273
- Material (details)
Current bridge: Electrolytic copper, tin-plated, terminal spring: Cr-Ni steel, high alloyed
- Nominal voltage
450 V
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Number of pins
3
18 - 14
- Contact material
Cathode copper
- RoHS-compliant
- Product type
Screw terminal
Documents & Downloads
Datasheet
Datasheet 541329 WAGO 2273-203-1 2273 Screw terminal flexible: - fixed: 0.5-2.5 mm² Number of pins: 3 1 pc(s) Transparent, Orange
User & Safety Instructions
User & Safety Instructions 541329 WAGO 2273-203-1 2273 Screw terminal flexible: - fixed: 0.5-2.5 mm² Number of pins: 3 1 pc(s) Transparent, Orange
Information
Information 541329 WAGO 2273-203-1 2273 Screw terminal flexible: - fixed: 0.5-2.5 mm² Number of pins: 3 1 pc(s) Transparent, Orange
Conformity certificate
Conformity certificate 541329 WAGO 2273-203-1 2273 Screw terminal flexible: - fixed: 0.5-2.5 mm² Number of pins: 3 1 pc(s) Transparent, Orange
Certificate
Certificate 541329 WAGO 2273-203-1 2273 Screw terminal flexible: - fixed: 0.5-2.5 mm² Number of pins: 3 1 pc(s) Transparent, Orange
Description
Such a small thing can actually be great!

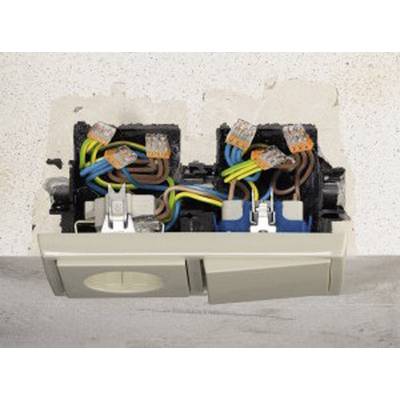

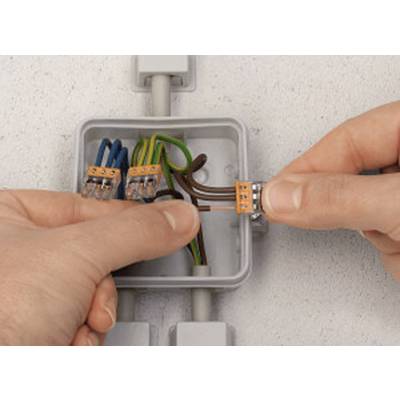

Wago has developed multi-purpose junction box connector 2273 in order to accommodate more line branches in junction boxes and device connection terminals. Requires 51% less space in comparison to popular 273 series. A new contact system is possible from it. The new terminals can be inserted more easily in junction boxes and device connection terminals and thus reduce the risk of damage to single conductors.
The advantages are obvious:
The cross section from 0.5 to 2.5 mm ² (solid) of the conductor can be individually mixed, therefore only one series is required for connecting all cross sections.
Transparent casing for visual inspection.
Large inspection opening for all testing probes.
Inspection glass on lid for inspecting contact protection.
Rapid detection of terminal type, since every size of terminal size has its own lid colour.
This text is machine translated.
Wago has developed multi-purpose junction box connector 2273 in order to accommodate more line branches in junction boxes and device connection terminals. Requires 51% less space in comparison to popular 273 series. A new contact system is possible from it. The new terminals can be inserted more easily in junction boxes and device connection terminals and thus reduce the risk of damage to single conductors.
The advantages are obvious:
The cross section from 0.5 to 2.5 mm ² (solid) of the conductor can be individually mixed, therefore only one series is required for connecting all cross sections.
Transparent casing for visual inspection.
Large inspection opening for all testing probes.
Inspection glass on lid for inspecting contact protection.
Rapid detection of terminal type, since every size of terminal size has its own lid colour.
