WAGO 2602-1102 PCB terminal 160 pc(s)

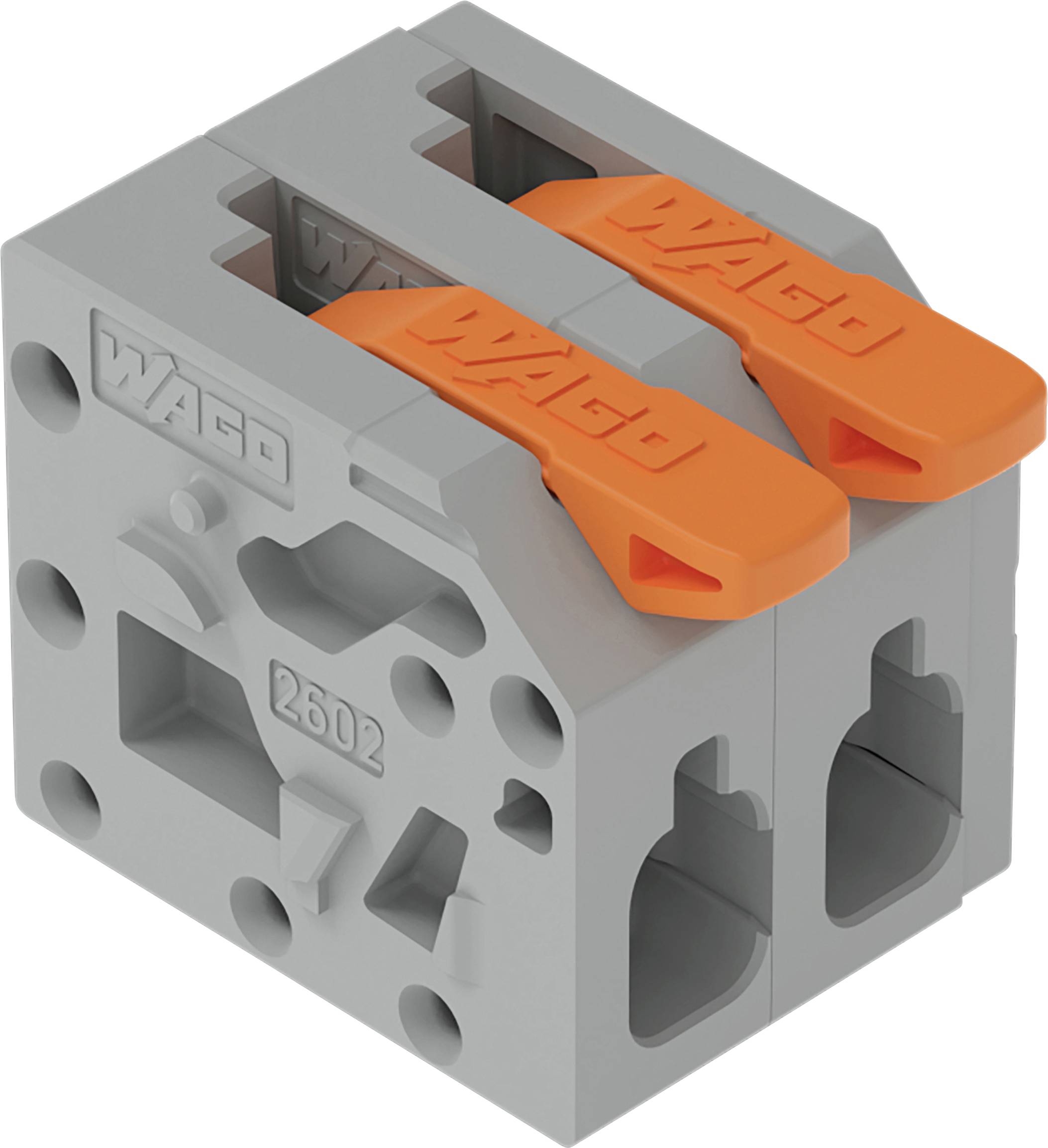

A grey Wago electrical connector block with two orange levers open for wire insertion.

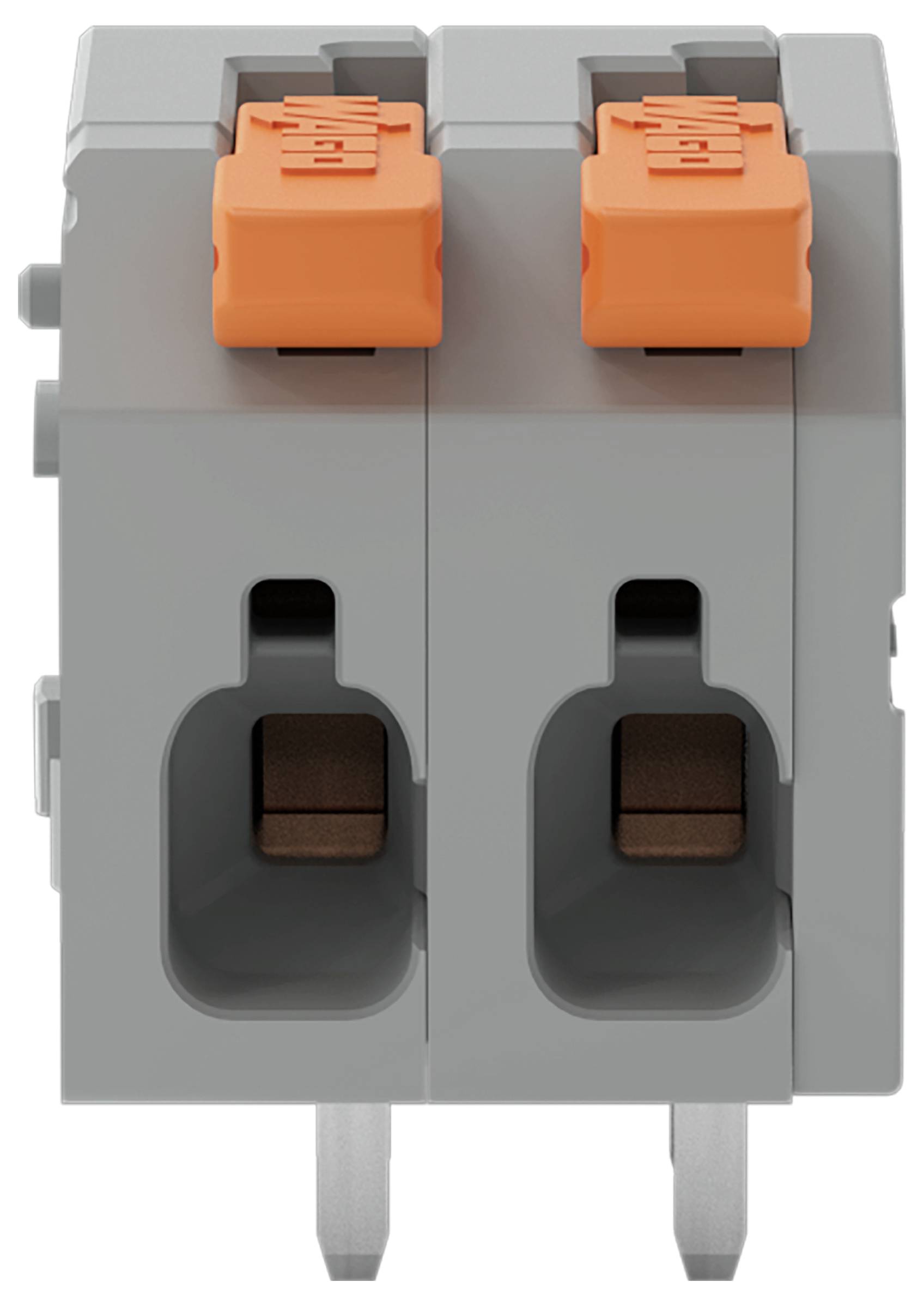

A gray electrical connector with two orange levers on top, designed for wire attachment, shown from the front view.

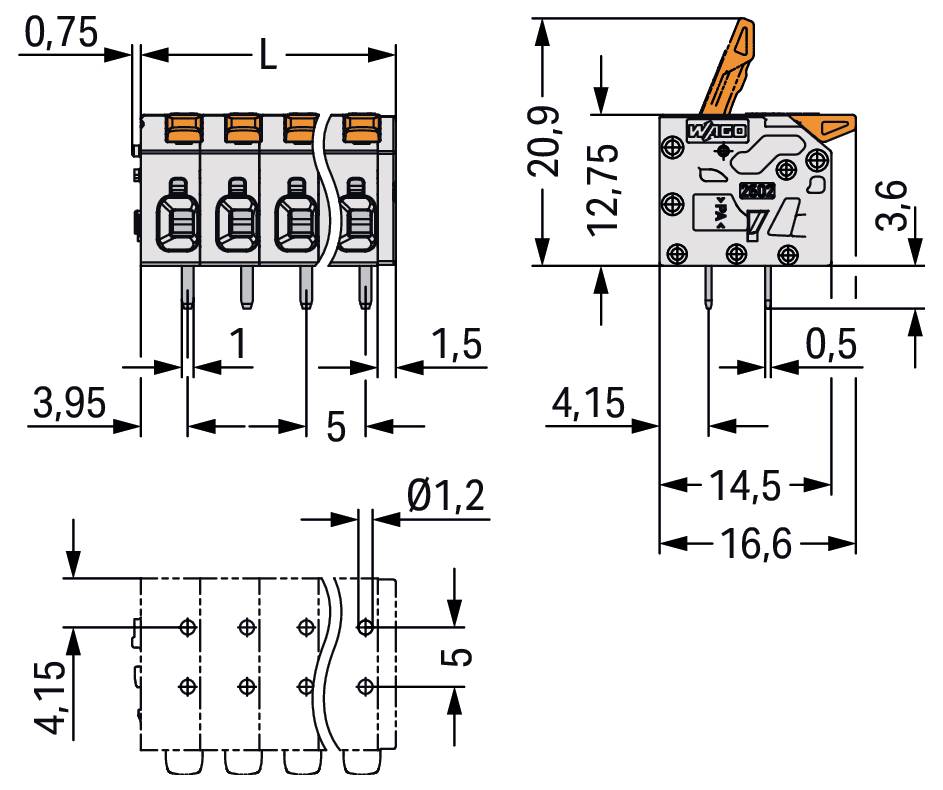

'Technical drawing of a WAGO lever connector. Shows dimensions: 4.15 height, 14.5 width, 16.6 depth, with wire entry points and levers.'
1/3
Product type
PCB terminal
Type
2602-1102
Manufacturer part #
2602-1102
Content
160 pc(s)
Rated surge voltage
4 kV
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

PCB terminal lever 2.5 mm² RM 5 mm 2-pin,gray

  • Content 160 pc(s)

Technical specifications

Type

2602-1102

Product type

PCB terminal

Manufacturer part #

2602-1102

Content

160 pc(s)

Rated surge voltage

4 kV

Test current

24 A

Operation

Lever

Rated voltage

630 V

Flammability rating

V0

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3643400 WAGO 2602-1102 PCB terminal 160 pc(s)

Description

Lever 2.5 mm² RM 5 mm 2-pin,gray

This text is machine translated.
