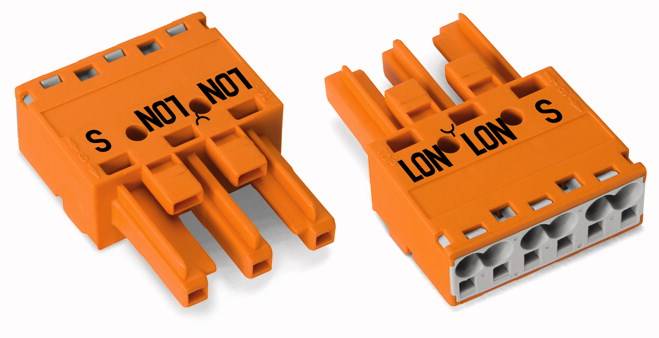

WAGO 770-1343 Mains connector WINSTA MIDI Socket, straight Total number of pins: 3 25 A Orange 100 pc(s)
Product type
Mains connector
Connector type
Socket, straight
Total no. of pins
3
Connection
Pull spring
Nominal voltage
250 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Socket
- 770-1343
- Industrial packaging with 100 pieces
- This text is machine translated.
Technical specifications
- Product type
Mains connector
- Connector type
Socket, straight
- Total no. of pins
3
- Connection
Pull spring
- Nominal voltage
250 V
- Factory colour
Orange
- Content
100 pc(s)
- Nominal current
25 A
- Nominal current - rounded value
25 A
20 - 12
- Manufacturer part #
770-1343
- Industrial packaging
Yes
- Coding
R
- Contact material
Copper alloy
- Number of pins
3
- Width
30 mm
- Height
12.9 mm
- Series
WINSTA MIDI
- Type
770-1343
- Depth
37.5 mm
30
Bus
FALSE
12.9 mm
Spring clamp connection
Separate
25 A
250 V
FALSE
3
37.5 m
Polyamide (PA)
Tinned
3
TRUE
4 kV
1 mΩ
CuSn
IP20
Orange
0.044
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 655220 WAGO 770-1343 Mains connector WINSTA MIDI Socket, straight Total number of pins: 3 25 A Orange 100 pc(s)
User & Safety Instructions
User & Safety Instructions 655220 WAGO 770-1343 Mains connector WINSTA MIDI Socket, straight Total number of pins: 3 25 A Orange 100 pc(s)
