WAGO 770-854 Mains connector WINSTA MIDI Plug, vertical mount Total number of pins: 4 25 A Grey 50 pc(s)

Four-pin electrical connector, suitable for electrical connection in industrial applications.
Grey WAGO connector with four numbered inputs, suitable for electrical connection and wiring.

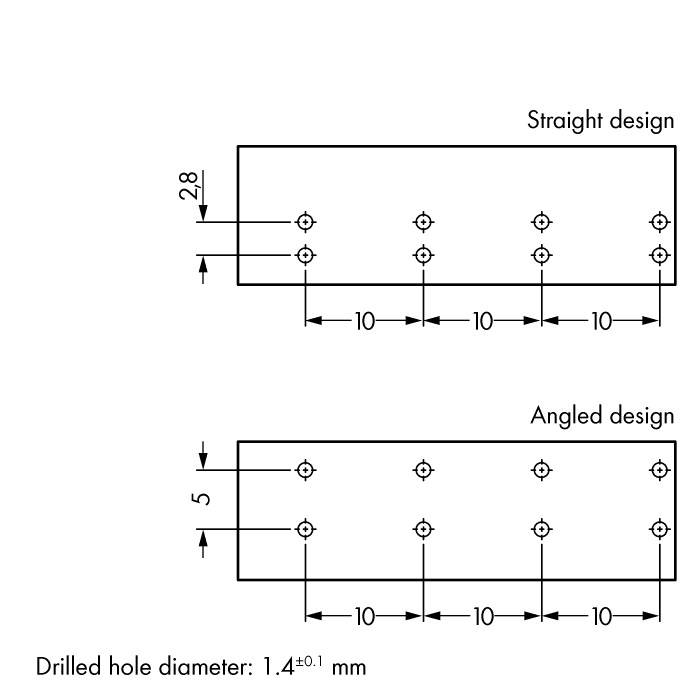

'Technical Drawing: Two Drilling Designs. Top: Straight Design with 2.8 mm Spacing. Bottom: Angled Design with 5 mm Spacing. Drill Hole Diameter: 1.4±0.1 mm.'
1/3
Product type
Mains connector
Connector type
Plug, vertical mount
Total no. of pins
4
Connection
Soldering
Nominal voltage
400 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Connector

  • 770-854
  • Industrial packaging, pack of 50
  • This text is machine translated.

Technical specifications

Product type

Mains connector

Connector type

Plug, vertical mount

Total no. of pins

4

Connection

Soldering

Nominal voltage

400 V

Factory colour

Grey

Content

50 pc(s)

Nominal current

25 A

Nominal current - rounded value

25 A

Manufacturer part #

770-854

Industrial packaging

Yes

Coding

B

Contact material

Copper alloy

Number of pins

4

Width

37 mm

Height

26 mm

Series

WINSTA MIDI

Type

770-854

Depth

11.7 mm

UKCA

not relevant
