WAGO 792-803 Blue 1 pc(s)

Schematic drawing of an electronic component with dimensions: width 91 mm (3.58 inches), height 56 mm (2.2 inches).

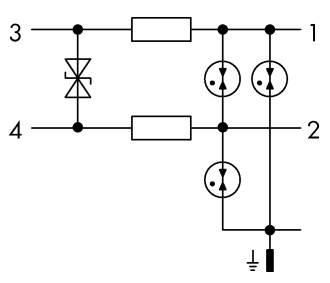

Circuit diagram with two resistors, a diode, two current sources and earthing. Connections between terminals 1, 2, 3 and 4.

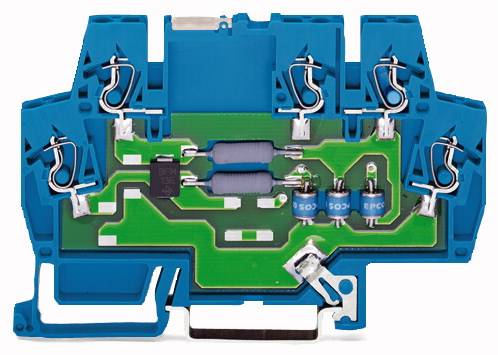

Electrical terminal with a blue cover, revealing internal components such as circuit tracks, resistors, and connections.
1/3
Packaging type
Piece
Factory colour
Blue
Stripping length (max.)
5 mm
Dim
(L x W) 6 mm x 6 mm
Connection
Spring-loaded terminal
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Packaging type

Piece

Factory colour

Blue

Stripping length (max.)

5 mm

Dim

(L x W) 6 mm x 6 mm

Connection

Spring-loaded terminal

Connector colour

Blue

Weight

38.3 g

Manufacturer part #

792-803

Content

1 pc(s)

Series

792

Number of pins

2

Width

6 mm

Length

6 mm

Series

792

Type

792-803

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 641128 WAGO 792-803 Blue 1 pc(s)

User & Safety Instructions

User & Safety Instructions 641128 WAGO 792-803 Blue 1 pc(s)
