WAGO 812-114 N/A 12 pc(s)
EAN:
Part number:
Item no:
Packaging type
Package
Factory colour
Blue
Stripping length
12 mm
Stripping length (max.)
12 mm

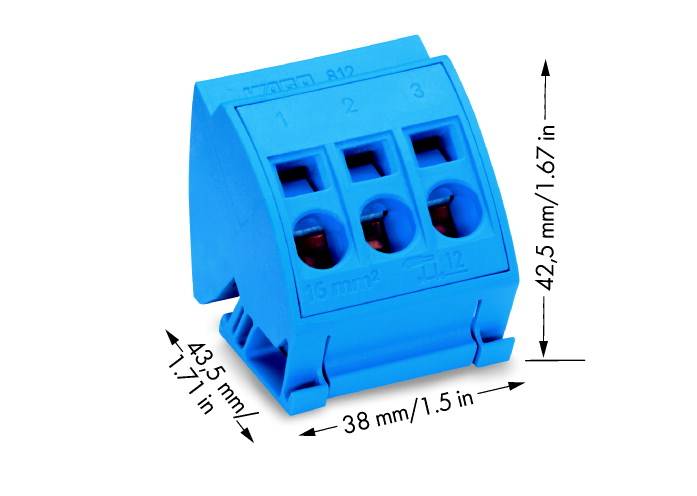

Dim
(L x W x H) 38 x 38 x 42.5 mm
Datasheet (PDF)
Highlights & Details
Connection block 16 mm²
- 812-114
- Industrial packaging with 12 pieces
- This text is machine translated.
Technical specifications
- Packaging type
Package
- Factory colour
Blue
- Stripping length
12 mm
- Stripping length (max.)
12 mm
- Dim
(L x W x H) 38 x 38 x 42.5 mm
- Connection
Spring-loaded terminal
- Connector colour
Blue
- Weight
42.9 g
- Manufacturer part #
812-114
- Industrial packaging
Yes
- Content
12 pc(s)
- Clamp width
38 mm
- Series
812
- Width
38 mm
- Height
42.5 mm
- Length
38 mm
- Series
812
- Type
812-114
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (max.)
16 mm²
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 655194 WAGO 812-114 N/A 12 pc(s)
User & Safety Instructions
User & Safety Instructions 655194 WAGO 812-114 N/A 12 pc(s)
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
