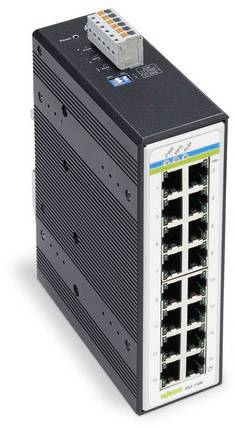

WAGO 852-1106 852-1106 Industrial Ethernet switch 1 GBit/s-0

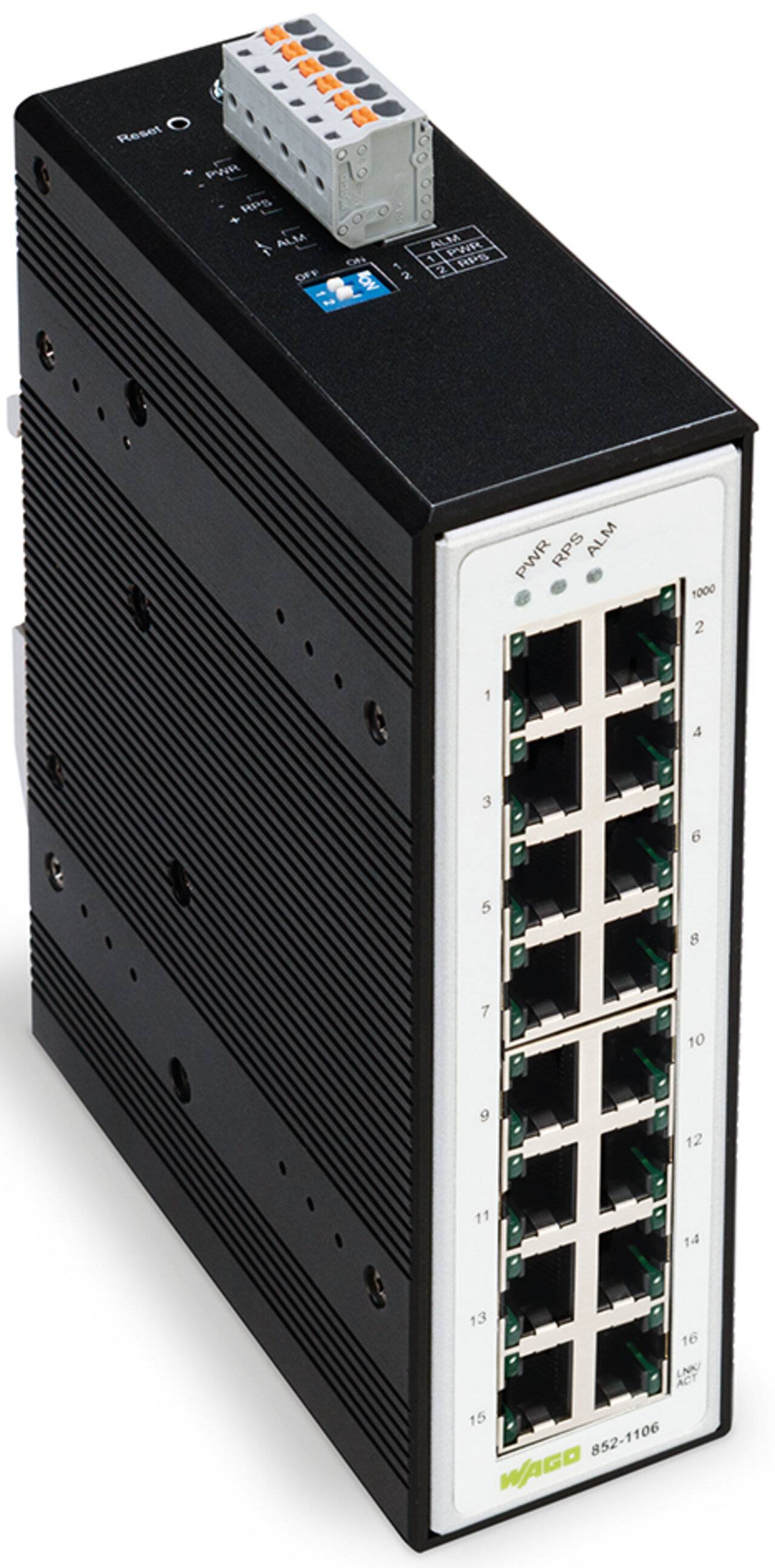

WAGO 852-1106 852-1106 Industrial Ethernet switch 1 GBit/s-1

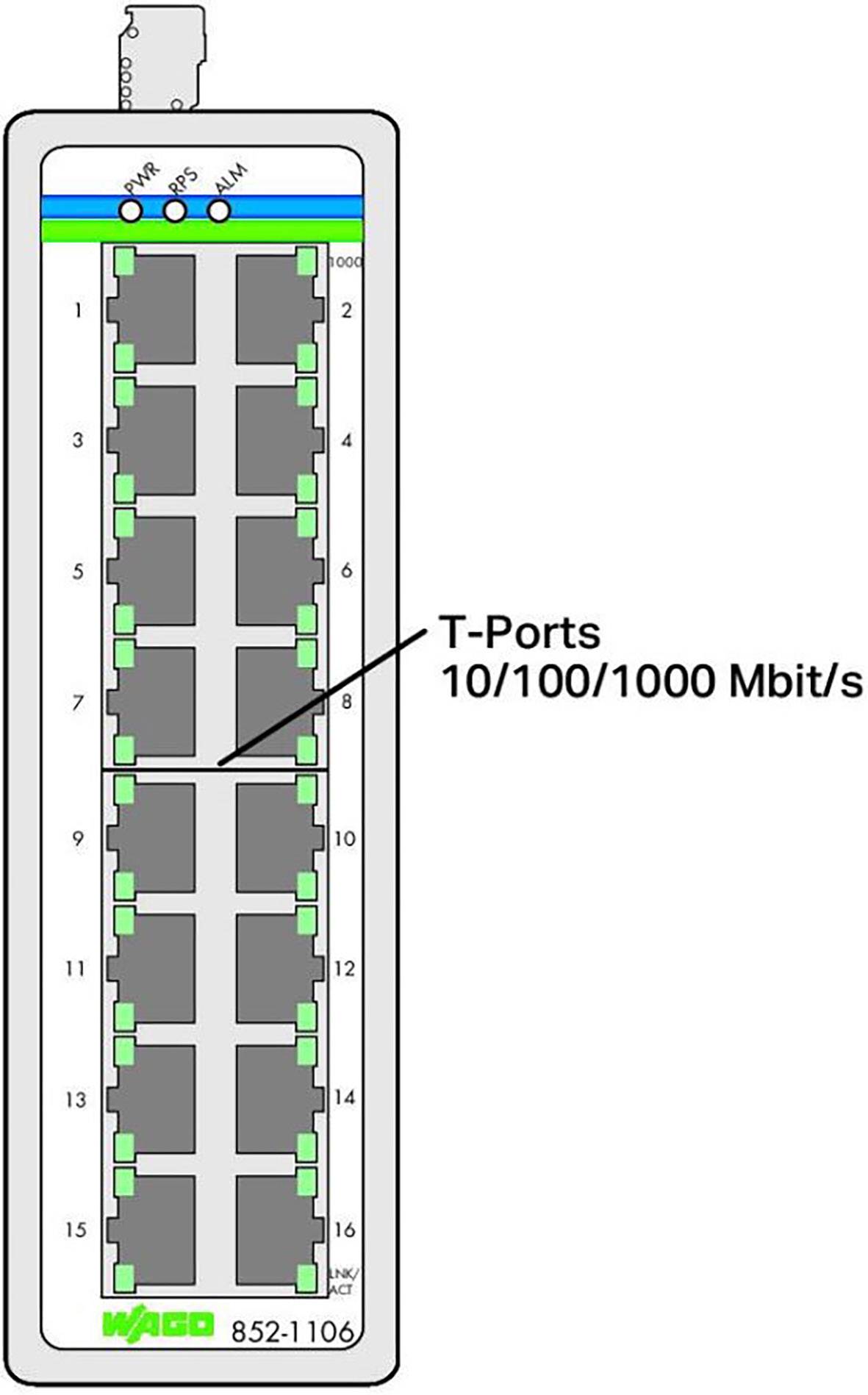

WAGO 852-1106 852-1106 Industrial Ethernet switch 1 GBit/s-2

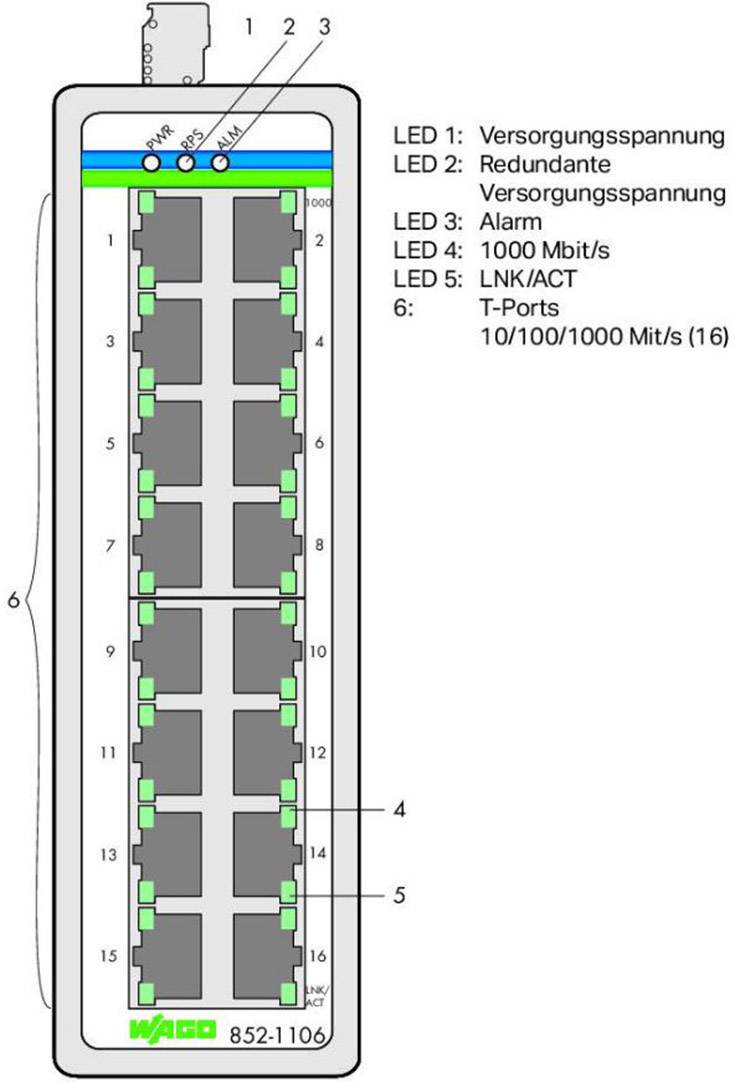

WAGO 852-1106 852-1106 Industrial Ethernet switch 1 GBit/s-3

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Industrial Ethernet Switch

Extended temperature range

Technical specifications

Communication Standards:
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p prioritization

Product type: Industrial Ethernet switch

LAN transfer rate: 10 MBit/s
1000 MBit/s

Transfer rate: 1 GBit/s

Ethernet ports: 16

10/100/1000 Mbps ports: 16 x

Port type: RJ45

Auto-uplink at each port: Yes

MAC addresses: 8000

Type: 852-1106

Interfaces: RJ45

: IP30

Factory colour: Black

Operating voltage: 12 V DC
60 V DC

Max. ambient temperature: +70 °C

Min. ambient temperature: -40 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1924006 WAGO 852-1106 852-1106 Industrial Ethernet switch 1 GBit/s

Description

The 852-1106 is an Industrial Ethernet Switch with 16 ports 10/100/1000Base-T
The switch has a robust metallic casing, a redundant power supply and a function monitoring with relay.
Properties:
Redundant DC power supply
Wide Supply Voltage Range: DC 12 … 60 V
DIP switch for release of alarm functions
Fully compatible with the standards IEEE 802.3, 802.3u, 802.3ab
Non-blocking, store-and-forward switching
Auto-negotiation on all 10/100/1000Base-T-Ports
Auto-MDI/MDIX (crossover) at all 10/100/1000Base-T-Ports
Integrated address look-Up-Tabelle, supports up to 8000 absolute MAC addresses
Overvoltage protection
Prioritization of Profinet Ethernet data packets (Ether type=0 x 8892) according to IEEE 802.1p
