Name: WAGO 852-1328 852-1328 Network switch 10 / 100 / 1000 MBit/s
Brand: WAGO
SKU: 2625044

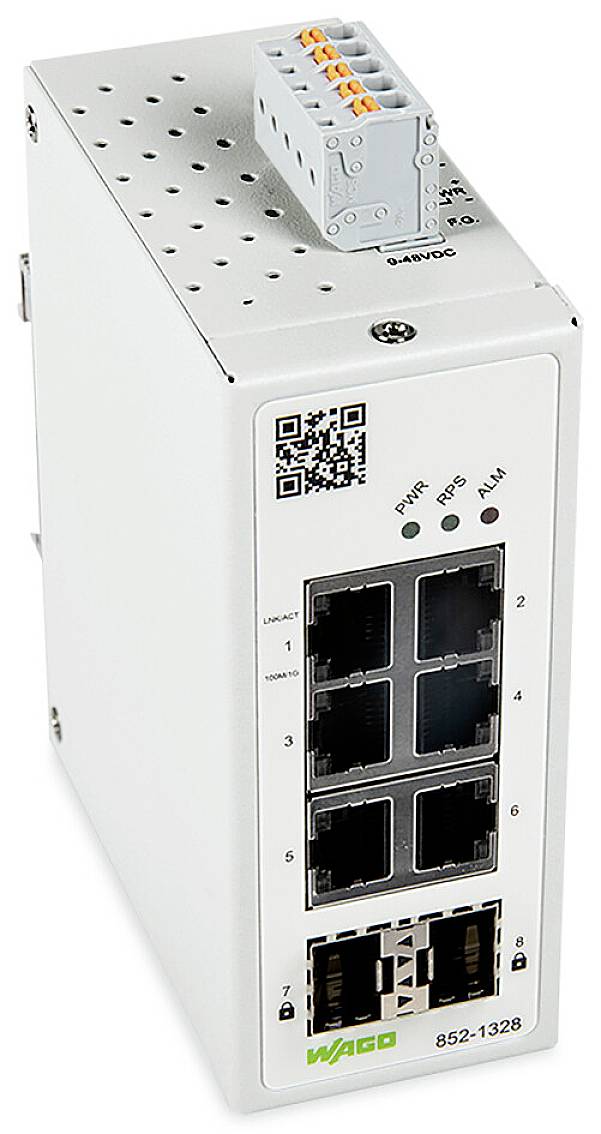

A white network switch with multiple Ethernet ports and a QR code on the front. A connection block is visible at the top.

Network switch with six Ethernet ports and two fibre optic connections, status LEDs for power, PoE and alarm located on the front panel.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Industrial managed switch; 6-port 1000BASE-T; 2-slot 1000BASE-SX/LX; MAC security

Web-based (HTTP(S))Configuration and diagnostics via SNMPv3Redundant DC power supplySupply voltage range: DC 9 … 48 V.Fully compatible with the IEEE802.3, 802.3u, 802.3z, 802.3x, 802.3ab, 802.1P, 802.1X, 802.1Q, 802.1AENon-blocking, store-and-forward switchingAutonegotiation on all 10/100/1000BASE-T portsAuto MDI/MDIX (crossover) on all 10/100/1000BASE-T portsSNMP v1/v2c/v3

Technical specifications

Product type: Network switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

10/100/1000 Mbps ports: 6 x

Weight: 639 g

Width: 45.30 mm

Height: 110 mm

Depth: 92 mm

Type: 852-1328

Interfaces: RJ45

: IP30

Factory colour: Light grey

Max. ambient temperature: +70 °C

Min. ambient temperature: -20 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2625044 WAGO 852-1328 852-1328 Network switch 10 / 100 / 1000 MBit/s

Description

The 852-1328 is an industrial, configurable ETHERNET switch, with 6 ports 10/100/1000BASE-T and 2 ports SFP-1000BASE-SX/LX (SFP modules are optionally available). Data encryption according to IEEE802.1AE (MAC security standard) is performed when communicating via the SFP slots (ports 7 and 8). Due to this functionality and the small dimensions, this product is suitable for retrofitting the network security during operation of the automation system. The customer application remains unchanged. The optional authentication of the other nodes in the network is carried out port-specific according to IEEE 802.1X and RADIUS server. The switch has a robust housing and a redundant power supply.

This text is machine translated.
