WAGO 859-390 Relay terminal Nominal voltage: 24 V DC Switching current (max.): 3 A 1 change-over Package 25 pc(s)

Electrical terminal block for DIN rail mounting, with green circuit and screw connections for secure line connection.
Schematic drawing of an electronic component with dimensions: width 91 mm (3.58 inches), height 56 mm (2.2 inches).
'Graph of current-voltage characteristic: Voltage (U) on Y-axis, current (I) on X-axis. Shows decreasing voltage with increasing current.'

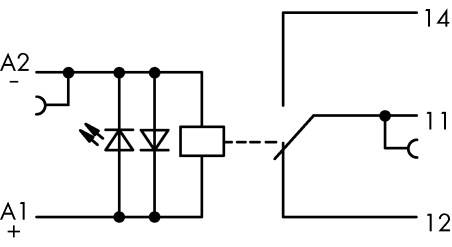

Electrical circuit diagram symbol: Series of components with diodes, switches and connections. Terminals: A1, A2, 11, 12, 14.
1/4
Image similar
Packaging type
Package
Product type
Relay terminal
Contact type
1 change-over
Nominal voltage
24 V DC
Switching voltage (max.)
250 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Switching relay terminal

  • Industrial packaging, pack of 25
  • This text is machine translated.

Technical specifications

Packaging type

Package

Product type

Relay terminal

Type

859-390

Connection

Pull spring

Factory colour

Grey

Response time

5 ms

Fall time

6 ms

Contact type

1 change-over

Contact material

AgNi

Nominal voltage

24 V DC

Switching voltage (max.)

250 V AC

Switching current (max.)

3 A

Max. switching capacity

750 VA

Durability

5 x 106 switching operations

Length

91 mm

Width

6 mm

Height

56 mm

Dim

(L x W x H) 91 x 6 x 56 mm

Content

25 pc(s)

Industrial packaging

Yes

Weight

22.4 g
