Name: WAGO 862-2525 Appliance connector 60 mm Spring-loaded terminal Configuration: no PE enclosure contact Black 200 pc(s)
Brand: WAGO
SKU: 657326

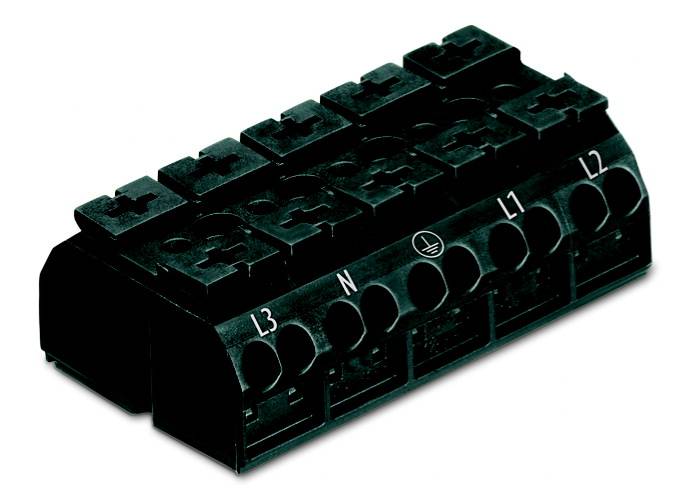

Black electrical terminal block with labels 'L3', 'N', 'Earth symbol', 'L1', 'L2', used for wiring connections.

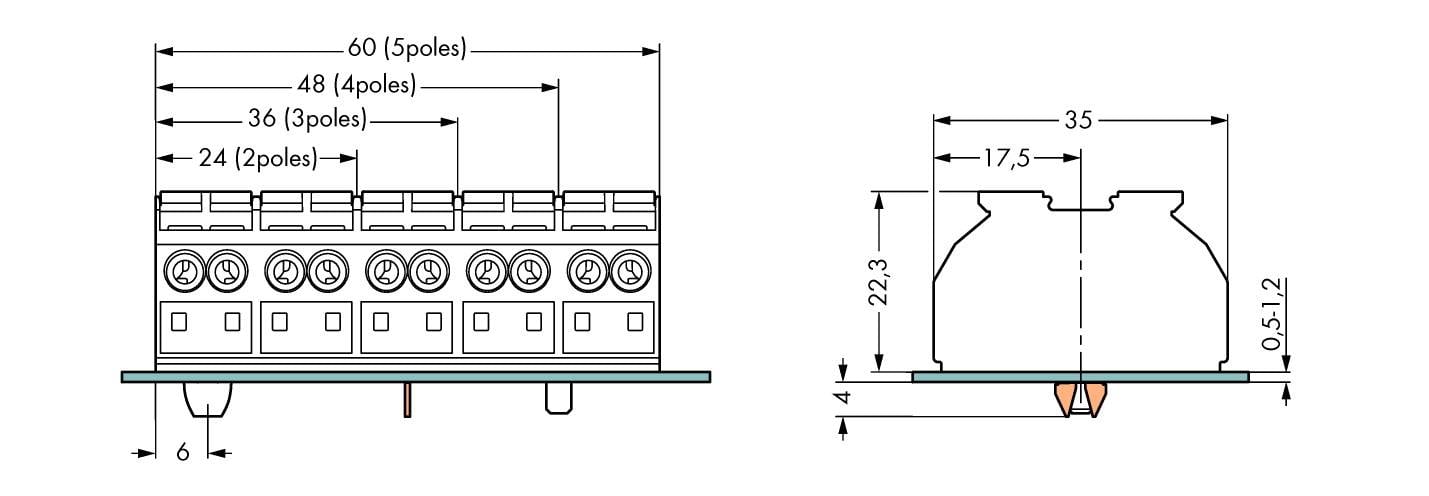

Technical drawing of a connector with dimensions: width 60 mm, 48 mm, 36 mm, 24 mm; height 22.3 mm, width 35 mm.

'Black electric terminal block with connections, labelled L1, L2, L3, N, for connecting electrical cables.'

1/3

Product type

Appliance connector

Connection

Spring-loaded terminal

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (max.)

4 mm²

Content

200 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Spring-loaded terminal

862-2525

Technical specifications

Product type: Appliance connector

Features: + latchkey

Connection: Spring-loaded terminal

Configuration: no PE enclosure contact

Cross section (flexible) (min.): 0.50 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.50 mm²

Cross section (inflexible) (max.): 4 mm²

AWG (min.): 20

AWG max.: 12

Clamp width: 60 mm

No. of rows: 1

Pins per row: 5

Number of pins: 5

Factory colour: Black

Nominal voltage: 500 V

Min. stripping length: 10 mm

Stripping length (max.): 11 mm

Manufacturer part #: 862-2525

Content: 200 pc(s)

Industrial packaging: Yes

Type: 862-2525

Dim: (L x W x H) 27.50 x 60 x 35 mm

Width: 60 mm

Height: 35 mm

Length: 27.50 mm

Flammability rating: V0

Connector colour: Black

Insulation material: Thermoplastic

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Connection

Content

WAGO 862-1503 Appliance connector Spring-loaded terminal 1 pc(s) Piece

Item no:522348

Fast track dispatch on Wed 14 Oct

607 Piece(s)Conrad Electronic

32 A

Spring-loaded terminal

1 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.49^*

WAGO 862-1505 Appliance connector Pull spring 1 pc(s) Piece

Item no:522361

Fast track dispatch on Wed 14 Oct

138 Piece(s)Conrad Electronic

32 A

Pull spring

1 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

WAGO 862-1552 Appliance connector Spring-loaded terminal Configuration: L1, N 1 pc(s) Piece

Item no:522335

Fast track dispatch on Wed 14 Oct

279 Piece(s)Conrad Electronic

32 A

Spring-loaded terminal

1 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

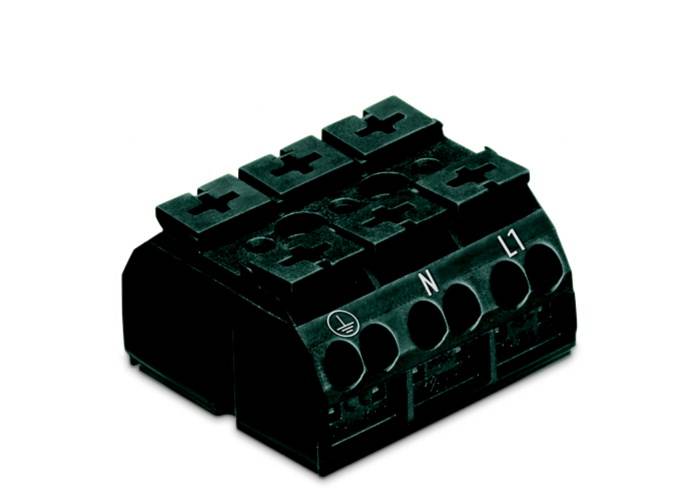

WAGO 862-1503/999-950 Appliance connector 36 mm Spring-loaded terminal Configuration: no PE enclosure contact Black 250 pc(s) Piece

Item no:657210

Unavailable

Conrad Electronic

28 A

Spring-loaded terminal

250 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

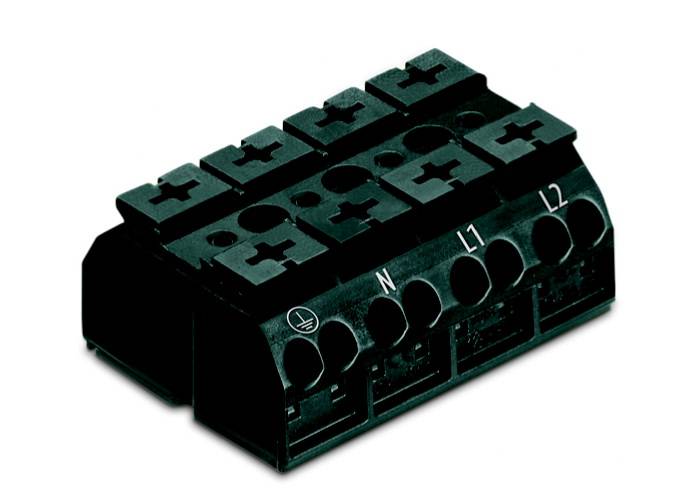

WAGO 862-1504 Appliance connector 48 mm Spring-loaded terminal Configuration: no PE enclosure contact Black 200 pc(s) Piece

Item no:657268

Unavailable

Conrad Electronic

Spring-loaded terminal

200 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 862-1504/999-950 Appliance connector 48 mm Spring-loaded terminal Black 200 pc(s) Piece

Item no:657251

Unavailable

Conrad Electronic

Spring-loaded terminal

200 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 862-1505/999-950 Appliance connector 60 mm Spring-loaded terminal Configuration: no PE enclosure contact Black 200 pc(s) Piece

Item no:657280

Unavailable

Conrad Electronic

Spring-loaded terminal

200 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

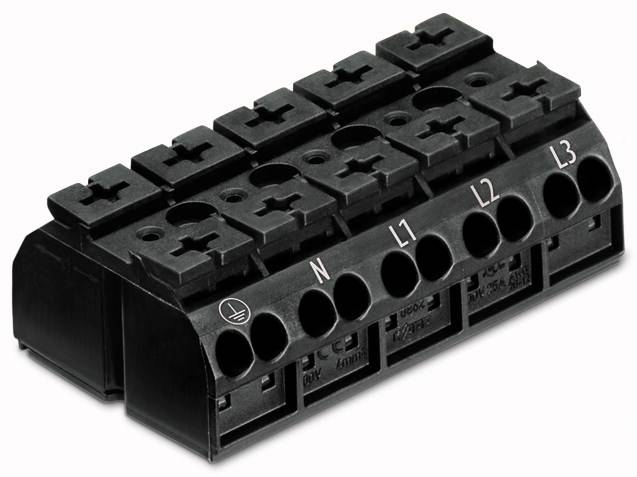

WAGO 862-1515 Appliance connector 60 mm Spring-loaded terminal Configuration: no PE enclosure contact Black 200 pc(s) Piece

Item no:657292

Unavailable

Conrad Electronic

Spring-loaded terminal

200 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 862-1515/999-950 Appliance connector 60 mm Spring-loaded terminal Configuration: no PE enclosure contact Black 200 pc(s) Piece

Item no:657293

Unavailable

Conrad Electronic

Spring-loaded terminal

200 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

WAGO 862-1525 Appliance connector 60 mm Spring-loaded terminal Configuration: no PE enclosure contact Black 200 pc(s)

Item no:657287

Unavailable

Conrad Electronic

Spring-loaded terminal

200 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 657326 WAGO 862-2525 Appliance connector 60 mm Spring-loaded terminal Configuration: no PE enclosure contact Black 200 pc(s)

User & Safety Instructions

User & Safety Instructions 657326 WAGO 862-2525 Appliance connector 60 mm Spring-loaded terminal Configuration: no PE enclosure contact Black 200 pc(s)
