Name: WAGO 862-2552 Appliance connector 24 mm Spring-loaded terminal Configuration: no PE enclosure contact Black 500 pc(s)
Brand: WAGO
SKU: 652156

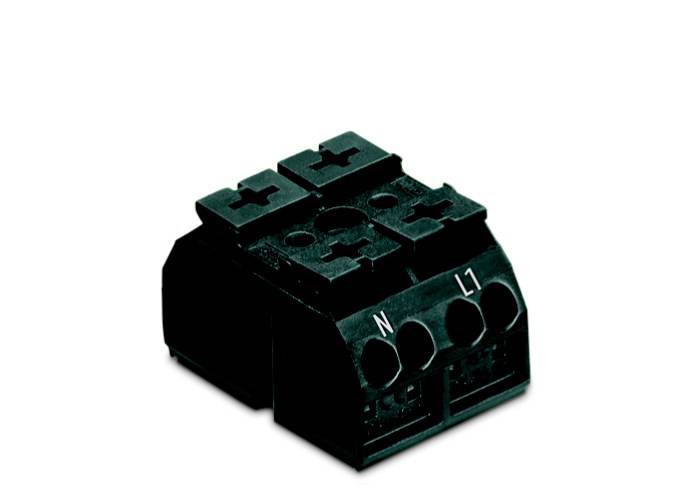

Black terminal block with three connection slots, labelled 'N' and 'L1', for electrical connections in circuits.

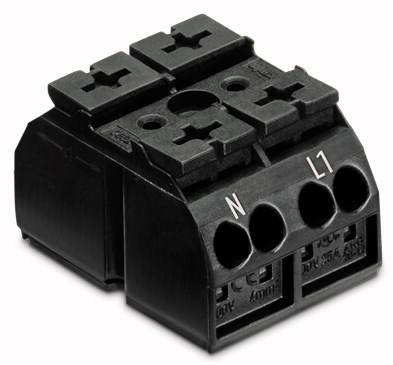

A black electrical terminal block with three holes, labelled 'N' and 'L1', for connecting wires.

'Technical drawing of an electrical connector. Left: detailed view with dimensions, right: side view with vertical measurements.'

1/3

Product type

Appliance connector

Connection

Spring-loaded terminal

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (max.)

4 mm²

Nominal current - rounded value

28 A

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Spring-loaded terminal

862-2552

Technical specifications

Product type: Appliance connector

Features: + latchkey

Connection: Spring-loaded terminal

Configuration: no PE enclosure contact

Cross section (flexible) (min.): 0.50 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.50 mm²

Cross section (inflexible) (max.): 4 mm²

AWG (min.): 20

AWG max.: 12

Clamp width: 24 mm

No. of rows: 1

Pins per row: 2

Number of pins: 2

Factory colour: Black

Nominal current: 28 A

Nominal current - rounded value: 28 A

Nominal voltage: 500 V

Min. stripping length: 10 mm

Stripping length (max.): 11 mm

Manufacturer part #: 862-2552

Content: 500 pc(s)

Industrial packaging: Yes

Type: 862-2552

Dim: (L x W x H) 22.30 x 35 x 24.00 mm

Width: 35 mm

Height: 24.00 mm

Length: 22.30 mm

Flammability rating: V0

Connector colour: Black

Insulation material: Thermoplastic

UKCA: not relevant
