WAGO 890-853 Mains connector WINSTA MINI Plug, vertical mount Total number of pins: 3 16 A Grey 100 pc(s) Piece
Packaging type
Piece
Product type
Mains connector
Connector type
Plug, vertical mount
Total no. of pins
3
Connection
Solder pins
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Pitch: 4.4 mm
- Packaging type
Piece
- Product type
Mains connector
- Connector type
Plug, vertical mount
- Total no. of pins
3
- Connection
Solder pins
- Nominal voltage
250 V
- Factory colour
Grey
- Content
100 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Weight
3.33 g
- Manufacturer part #
890-853
- Industrial packaging
Yes
- Coding
B
- Contact material
Copper alloy
- Number of pins
3

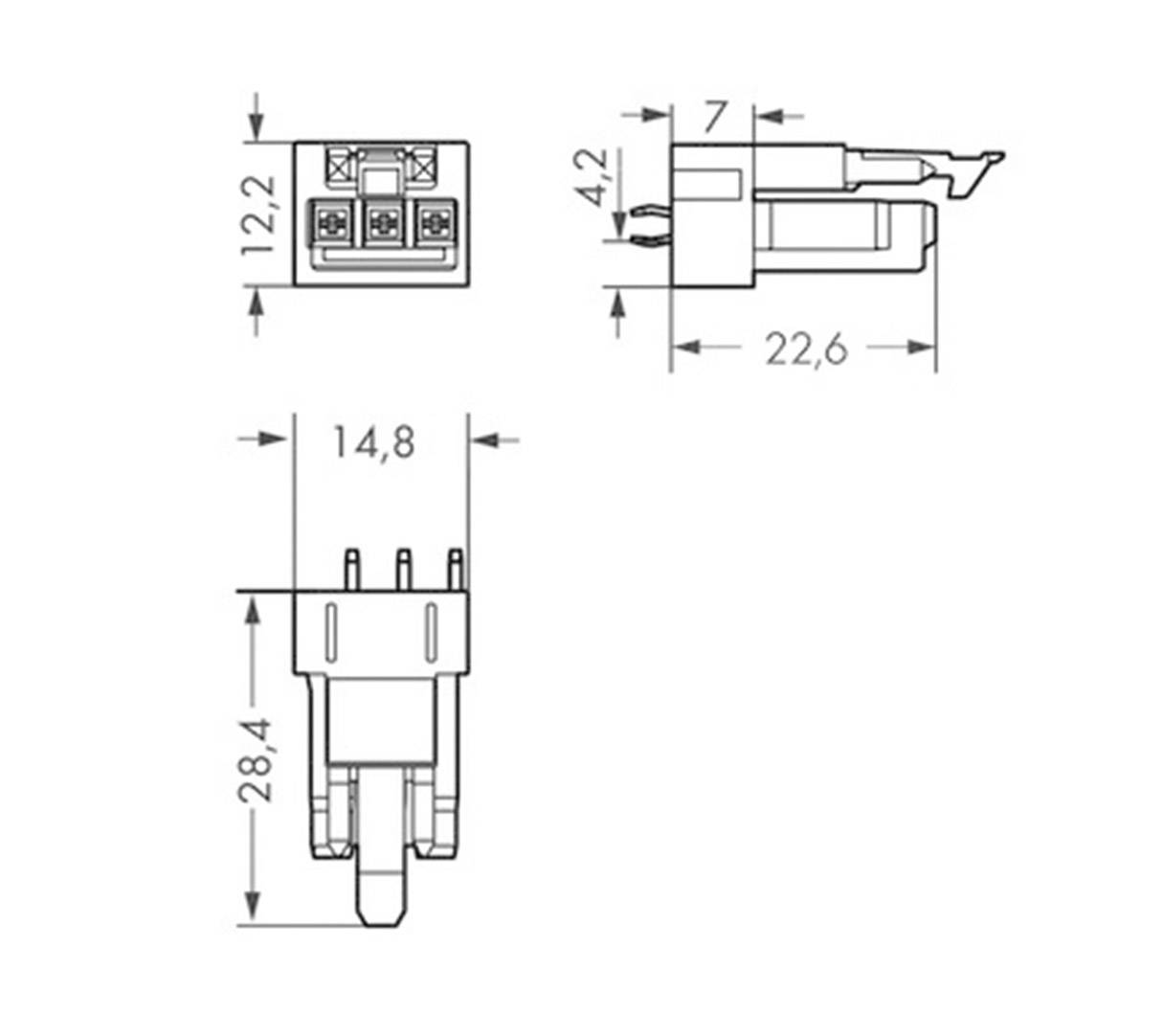

- Width
14.80 mm
- Height
12.20 mm
- Length
28.40 mm
- Series
WINSTA MINI
- Temperature range
-5 - +40 °C °C
- Type
890-853
Printed circuit board to cable
Grey
250 V
3
Pin
-35-85 °C
Solder
V0
4 kV
Soldering connection
Tin
III
3
4.4 mm
1
4.4 mm
Polyamide (PA)
16 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1379162 WAGO 890-853 Mains connector WINSTA MINI Plug, vertical mount Total number of pins: 3 16 A Grey 100 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1379162 WAGO 890-853 Mains connector WINSTA MINI Plug, vertical mount Total number of pins: 3 16 A Grey 100 pc(s) Piece
Description
Locking latches are on all hard-to-install products (snap-in variants for lights or devices, all distribution versions, all PCB versions), so that always a locking with the factory-installed inserting jacks or plugs takes place. An additional locking latch is only possible with a "flying" connection (socket/plug) are required.
