Walther Werke Socket tower 83313010 83313010
EAN:
Part number:
Item no:
Technical specifications
- Design: Other
- Rated voltage 230/400 V
- Housing material: Other
- Rated current 63 A
- Connected power 44 kVA
- Number of CEE sockets (IEC 60309) 16 A / 400 V / 5-pin (1, 2, 3, N, PE): 1
- Number of earthed sockets CEE 7/3 (type F): 2
- Main switch DIII
- Residual current type A
- Number of residual current circuit breakers 30 mA: 1
- Emergency switch: No.
- Suitable according to IEC/EN 61439-4: No.
- Number of CEE sockets (IEC 60309) 32 A / 400 V / 5-pin (1, 2, 3, N, PE): 1
- Main switch rated current 63 A.
- Number of pins Main switch: 3
- Number of circuit breakers: 4
- Product type
Socket tower
IP44

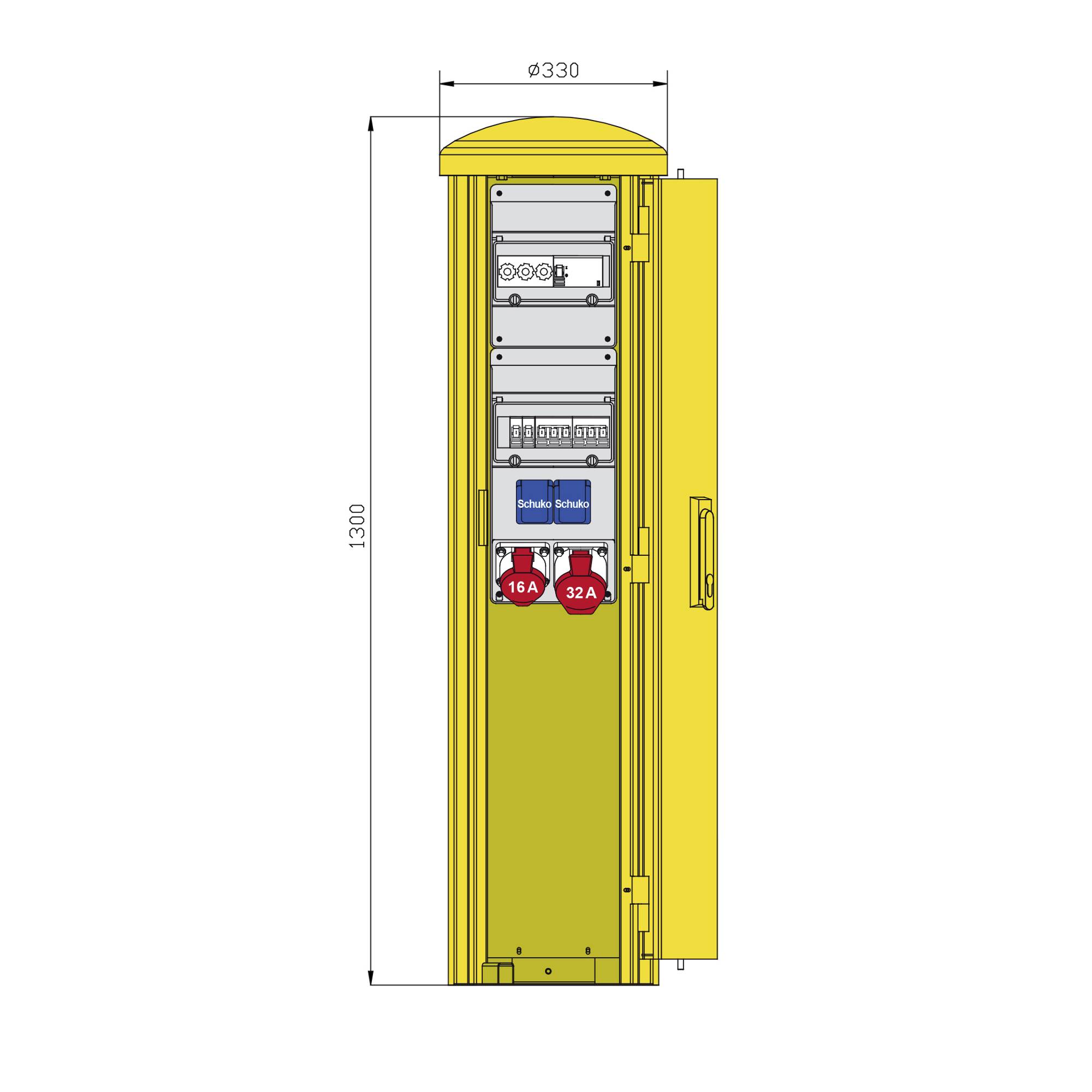

- Dim
(W x H x D) 330 x 1300 x 330 mm
- Width
330 mm
- Height
1300 mm
- Content
1 pc(s)
- Depth
330 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3836325 Walther Werke Socket tower 83313010 83313010
Description
Walther bollard column. Casing made of stainless steel (material 1.4301) with lacquer DB 703 - iron-glimmer gray with floor flange plate and internal holes for mounting Simple door with 3-point rod lock and profile half cylinder (closure G2123) Cable design with closed door possible protection type: IP44 size approx.: 1300 x 330mm / H x ØSteckdosenkombination with:connection:1 terminal block 2 x 5 x 25QMM for supply and cable loop outlet / safety:1 safety device 3P 63A D021 RCD circuit breaker 4P 63A/30mA -A-1 CEE attachment socket 32A 5P 400V 6h with circuit breaker (MCB) 3P 32A -C-1 CEE mounted socket 16A 400V 6h with circuit breaker (MCB) 3P 16A -C-2 Safety contact sockets 16A 2P 230V each with 1 circuit-breaker (MCB) 1P 16A -B-
