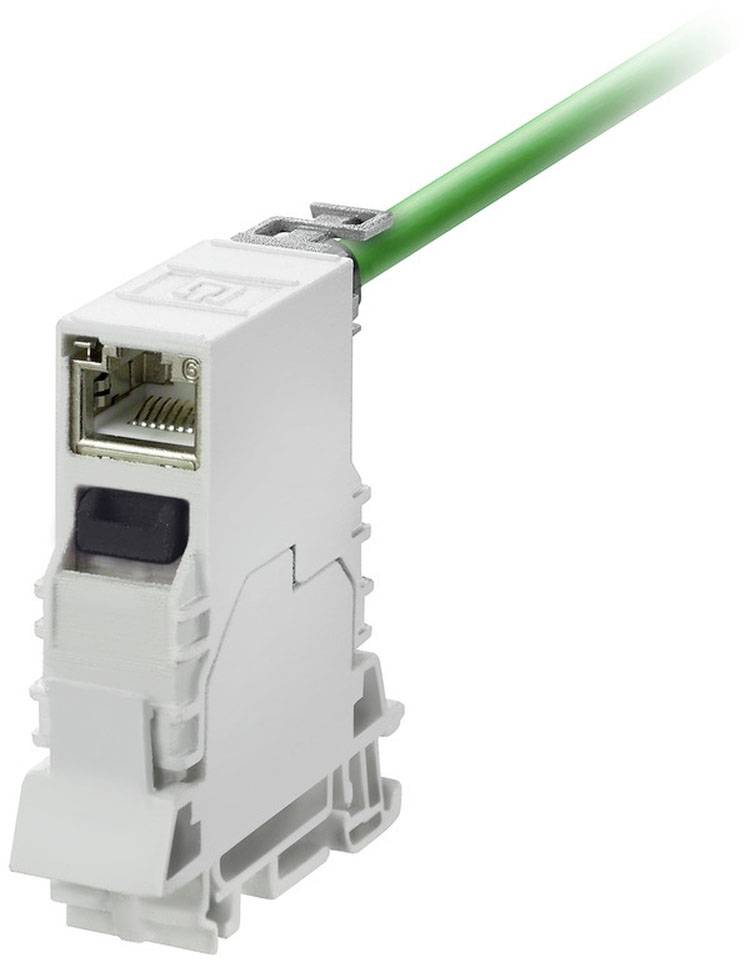

Image similar
Weidmüller 10 pc(s) IE-TO-RJ45-FJ-B DIN rail adapter
EAN:
Part number:
Item no:
Technical specifications
- Housing base material: PA
- Mounting type: TS 35
- Humidity: 0…93 % rel. humidity
- Temperature range Mounting: -25 °C - +70°C
- Connection 1: RJ45
- Connection 2: IDC
- Construction: Switchable potential connection of module / coupling to supporting rail
- Insulation diameter, max.: 1.6 mm
- Contact material: Spring steel, Ni 1.2 µm
- Contact surface: AU> 0.8 µm
- conductor connection diameter, single-wire: 0.4 mm - 0.64 mm
- conductor cross-section, single-wire (AWG): AWG 24 - AWG 22
- conductor diameter, fine-wire: 0.48 mm - 0.76 mm
- conductor cross-section, fine-wire (AWG): AWG 26 - AWG 22
- sheath diameter, min.: 5.5 mm
- sheath diameter, max.: 10 mm
- plug-in cycles: 750
- insulation resistance: 500 MΩ
- Contact resistance: <20 mΩ
- withstand voltage contact / contact:> 1000 V/DC
- withstand voltage Contact / shield:> 1500 V/DC
- current carrying capacity at 50 °C: 1 A
- insulation diameter, min.: 0.85 mm
- Product type
DIN rail adapter
- Weight
54.4 g
- Type
IE-TO-RJ45-FJ-B
- Interfaces
RJ45
IP20
- Factory colour
Light grey
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-40 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2241104 Weidmüller 10 pc(s) IE-TO-RJ45-FJ-B DIN rail adapter
Description
Scope of delivery
- 10X IE-TO-RJ45-FJ-B.
