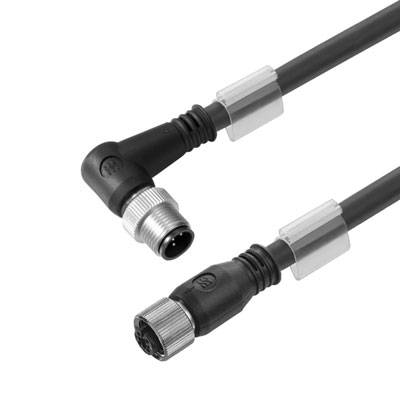

Weidmüller 1062100150 Sensor/actuator data cable (pre-fab) M12 Plug, right angle, Socket, straight 1.50 m No. of pins (R
Product type
Sensor/actuator data cable (pre-fab)
Connector type
Plug, right angle
Socket, straight
Connector standard
Sensor connector
Connection side A
M12 socket, straight
Connection side B
M12 socket, straight
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Bus-cable
- SAIL-M12WM 12G CD-1.5 A
Technical specifications
- Type
SAIL-M12WM12G-CD-1.5A
- Product type
Sensor/actuator data cable (pre-fab)
- Connector type
Plug, right angle
Socket, straight
- Connector standard
Sensor connector
- Connection side A
M12 socket, straight
- Connection side B
M12 socket, straight
- No. of pins
5
- Cable length
1.50 m
- Jacket material
PUR
- Nominal voltage
125 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Thread type connection side
M12
- Cable colour
Black
- Coding
A
- Min. temperature
-30 °C
- Max. temperature
+90 °C
- Seal type
Screw-on
- Manufacturer part #
1062100150
- Content
1 pc(s)
- RoHS-compliant
Yes
- Cable diameter (details)
7
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 196372 Weidmüller 1062100150 Sensor/actuator data cable (pre-fab) M12 Plug, right angle, Socket, straight 1.50 m No. of pins (R
User & Safety Instructions
User & Safety Instructions 196372 Weidmüller 1062100150 Sensor/actuator data cable (pre-fab) M12 Plug, right angle, Socket, straight 1.50 m No. of pins (R
Description
Bus line. Pin, Socket, bridged: No, poles: 5, shielded: Yes, LED: No, 1.5 m, PUR/TPE. Connections between two I/O slaves or between the control and I/O participants will be safest via pre-assembled cables realisert. The offer ranges from PROFIBUS via CANopen, DeviceNet, EtherCAT to Ethernet cables.
This text is machine translated.
