Name: Weidmüller 1067570000 Screw terminal 4 mm² Number of pins 3 Black 100 pc(s)
Brand: Weidmüller
SKU: 1952729

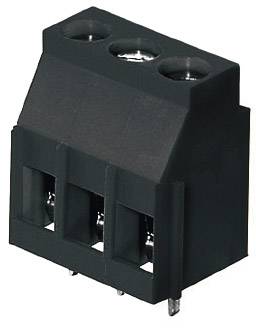

'A black, three-pin connector with metal contacts, commonly used in electronic circuits for cable connections.'

Image similar

Product type

Screw terminal

5.08 mm

Pins per row

Number of pins

Connection

Screw terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Our service for you

Technical specifications

Type: LL 5.08/03/90 3.2SN BK BX

Product type: Screw terminal

CS: 5.08 mm

No. of rows: 1

Pins per row: 3

Number of pins: 3

Series: LL

Min. stripping length: 6 mm

Stripping length (max.): 6 mm

Connection: Print
Screw terminal

Nominal current: 20 A

Cross section (flexible) (min.): 0.5 mm²

Nominal current - rounded value: 20 A

Cross section (inflexible) (min.): 0.5 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (max.): 6 mm²

AWG (min.): 26

Connector orientation: Parallel (to the PCB)

AWG max.: 12

Contact material: Cu-alloy, tin plated

Factory colour: Black

Weight: 4.62 g

Manufacturer part #: 1067570000

Content: 100 pc(s)

Nominal voltage: 300 V

Width: 15.89 mm

Height: 20.3 mm

Length: 11 mm

Type: LL 5.08/03/90 3.2SN BK BX

: 20.3 mm

: Black

: 320 V

: -50-120 °C

: Solder

: V0

: 1

: 4 kV

: II

: 2

: 5.08 mm

: 0.5-6 mm²

: 0.5-2.5 mm²

: 0.5-4 mm²

: IP20

: Polyamide (PA)

: 27.5 A
