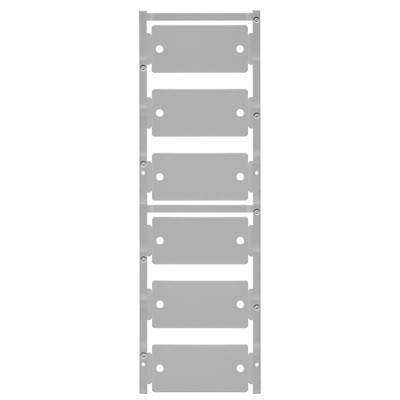

Weidmüller 1083170000 CC 30/60 O4MM MC NE GR Device markers Fitting type: Clip Grey No. of markers: 30 30 pc(s)
EAN:
Part number:
Item no:
Product type
Device markers
Fitting type
Clip
Type
CC 30/60 O4MM MC NE GR
Material
PA66
Suited for series
Devices and appliances
Universal usage
Datasheet (PDF)
Highlights & Details
Device marker multi-card
Our service for you
Technical specifications
- Depth: 1.2 mm
- Net weight: 4.533 g
- Flammability class according to UL 94: V-2
- Material color according to resistance code: 8
- Humidity: ≤ 60 %
- Type
CC 30/60 O4MM MC NE GR
- Product type
Device markers
- Fitting type
Clip
- Material
PA66
- Suited for series
Devices and appliances
Universal usage
- Features
Printable
UL94 flammability rating
- Series
CC
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Factory colour
Grey
- No. of markers
30
- Dim
(L x W x H) 30 x 60 x 30 mm
- Industrial packaging
Yes
- Content
30 pc(s)
- Dimensions
1.2 mm
- Suitable for diameters
4 mm
- Width
60 mm
- Height
30 mm
- Length
30 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 287304 Weidmüller 1083170000 CC 30/60 O4MM MC NE GR Device markers Fitting type: Clip Grey No. of markers: 30 30 pc(s)
User & Safety Instructions
User & Safety Instructions 287304 Weidmüller 1083170000 CC 30/60 O4MM MC NE GR Device markers Fitting type: Clip Grey No. of markers: 30 30 pc(s)
Description
With their razor-sharp printed writing area in different sizes, the multi-functional clip card engraved geratemarkierern at eye level as the ideal alternative for the labelling of electrical installations and switching systems, operate the entire spectrum of fixing methods. From the simple device labelling on the identification of pipes, valves, motors or lamps in accordance with DIN V VDE V 0108 (Part 100) to the type plate creation including colored company logo.
