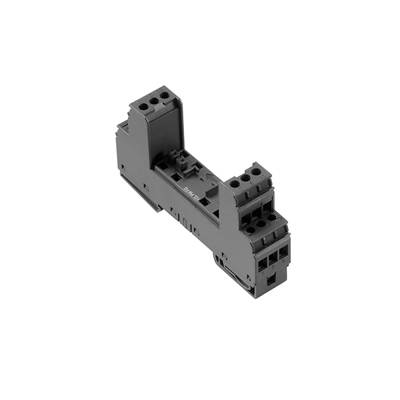

Weidmüller 1105700000 VSPC BASE 1CL PW FG Surge protection socket Surge protection for: Switchboards 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Overvoltage protection
- VSPC BASE 1 CL PW FG
Technical specifications
- Stripping length Rated connection: 7 mm Connection type: Screw connection
- Tightening torque, max.: 0.8 Nm
- Tightening torque, min.: 0.5 Nm
- Design: Clamp, other
- input current, max. II: 450 mA for
- signal and 26 A fo power Clamping range, max.: 4 mm²
- Clamping range, min.: 0.5 mm²
- Blade dimensions: 0.6 x 3.5 mm
- Bearing temperature:
- -40 °C to 80 °C
- conductor cross-section, single-wire, max.: 4 mm²
- conductor cross-section, fine-wire, max.: 2.5 mm²
- conductor cross-section, multi-wire, max.: 2.5 mm²
- nominal current IN: 16 A
- net weight: 73 g
- optical function display: No
- mounting rail: TS 35, TS 35 x 7.5
- overvoltage category: III
- pollution degree: 3
- Product type
Surge protection socket
- Surge protection for
Switchboards
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
1105700000
- Factory colour
Black
- Dim
(L x W x H) 23 x 17.8 x 90 mm
- Length
23 mm
- Width
17.8 mm
- Height
90 mm
- Depth
69 mm
- Content
1 pc(s)
- Weight
76 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 200398 Weidmüller 1105700000 VSPC BASE 1CL PW FG Surge protection socket Surge protection for: Switchboards 1 pc(s)
User & Safety Instructions
User & Safety Instructions 200398 Weidmüller 1105700000 VSPC BASE 1CL PW FG Surge protection socket Surge protection for: Switchboards 1 pc(s)
Description
Surge protection. Measure tax rules. Base element for the pluggable surge arrester VSPC. Integrated PE-foot in the base of the impedance neutral VSPC BASE as well as ground-free PE connection (FG) via built-in radio link, up to 20 kA (8/20 μs) and 2.5 kA (10/350 μs) securely to PE. Suitable for unearthed signal circuits.
This text is machine translated.
This text is machine translated.
