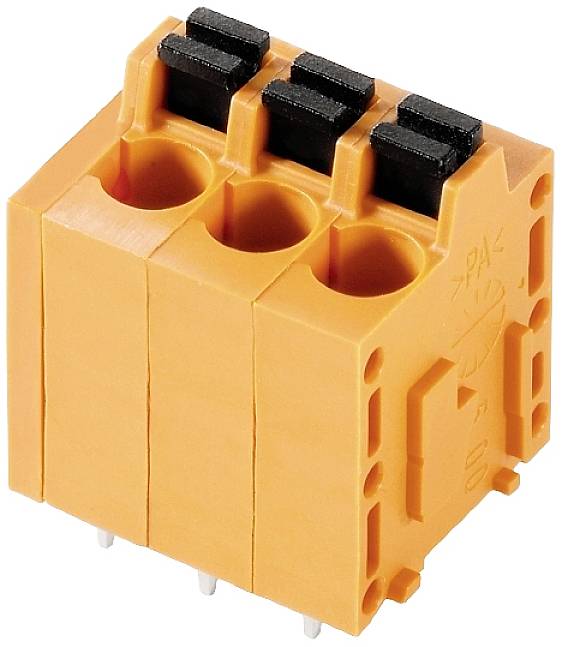

Weidmüller 1330410000 Screw terminal 2.5 mm² Number of pins 23 Orange 10 pc(s)
Product type
Screw terminal
CS
5 mm
Pins per row
23
Number of pins
23
Connection
Print
Push-in connector
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Content 10 pc(s)
Our service for you
Technical specifications
- Type
LMF 5.00/23/180 3.5SN OR BX
- Product type
Screw terminal
- CS
5 mm
- No. of rows
1
- Pins per row
23
- Number of pins
23
- Min. stripping length
10 mm
- Stripping length (max.)
10 mm
- Connection
Print
Push-in connector
- Nominal current
20 A
- Cross section (flexible) (min.)
0.25 mm²
- Nominal current - rounded value
20 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
24
- Connector orientation
Perpendicular (to the PCB)
- AWG max.
12
- Contact material
Copper alloy tin plated
- Factory colour
Orange
- Weight
34.06 g
- Manufacturer part #
1330410000
- Content
10 pc(s)
- Nominal voltage
300 V
- Width
117.7 mm
- Height
22.7 mm
- Length
14.8 mm
- Type
LMF 5.00/23/180 3.5SN OR BX
- UKCA
not relevant
