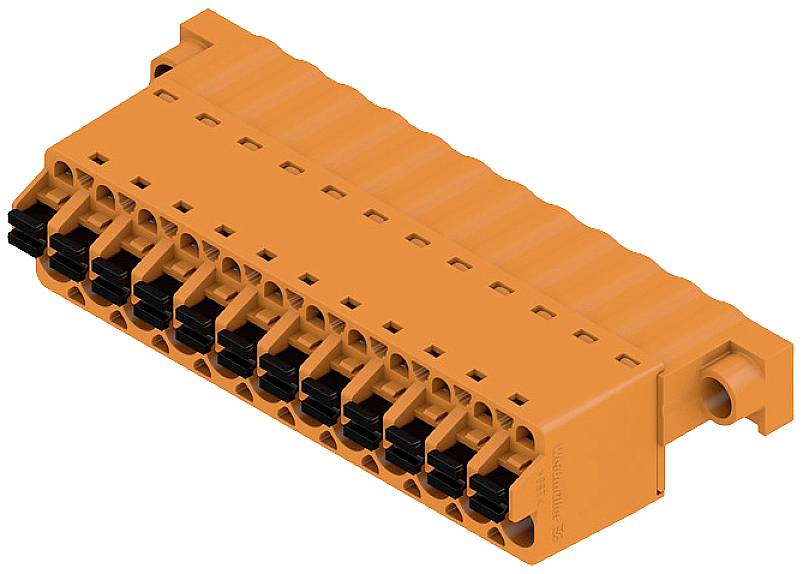

Weidmüller 1335800000 PCB connector Total number of pins 12 24 pc(s)
Product type
PCB connector
Total no. of pins
12
CS
5.08 mm
Content
24 pc(s)
Total number of pins
12
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total number of pins 12
- Content 24 pc(s)
Our service for you
Technical specifications
- Depth: 30 mm
- Insulation material: PBT
- Storage temperature: -25 °C to +55 °C.
- Stripped length: 10 mm
- Conductor connection technology: PUSH-IN, spring connection
- Conductor outlet direction: 180°
- Insertion force/pole 7 N.
- Draw force/pole 5.5 N.
- Short-term current strength: 3 x 1s with 120 A.
- Actuator color: Black
- Actuator material: PBT
- Mandrel 2.8 mm x 2 mm
- Product type
PCB connector
- Total no. of pins
12
- Total number of pins
12
- CS
5.08 mm
- Nominal current
14 A
- Nominal current - rounded value
14 A
- DIN standard
DIN 5264
- Connection
Push-in connector
Spring-loaded terminal
- Factory colour
Orange
- Case material
PA
- Manufacturer part #
1335800000
- Content
24 pc(s)
- Contact material
CuSn
- Height
14.2 mm
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
SLF 5.08/12/180F SN OR BX
26 AWG - 12 AWG
- Dim
14.2 mm x 30
- Resistance
4.5 mΩ
- Insulation resistance
100 MΩ
- Clamping range diameter mm
0.13 mm² - 3.31 mm²
- Connector contact surface
Tin plated
- Dimensions
14.2 mm x 30 mm
- Nominal voltage
300 V
- Number of pins
12
- Cross section
2.5 mm²
- RoHS-compliant
Yes
- Mating cycles
25
- UKCA
not relevant
