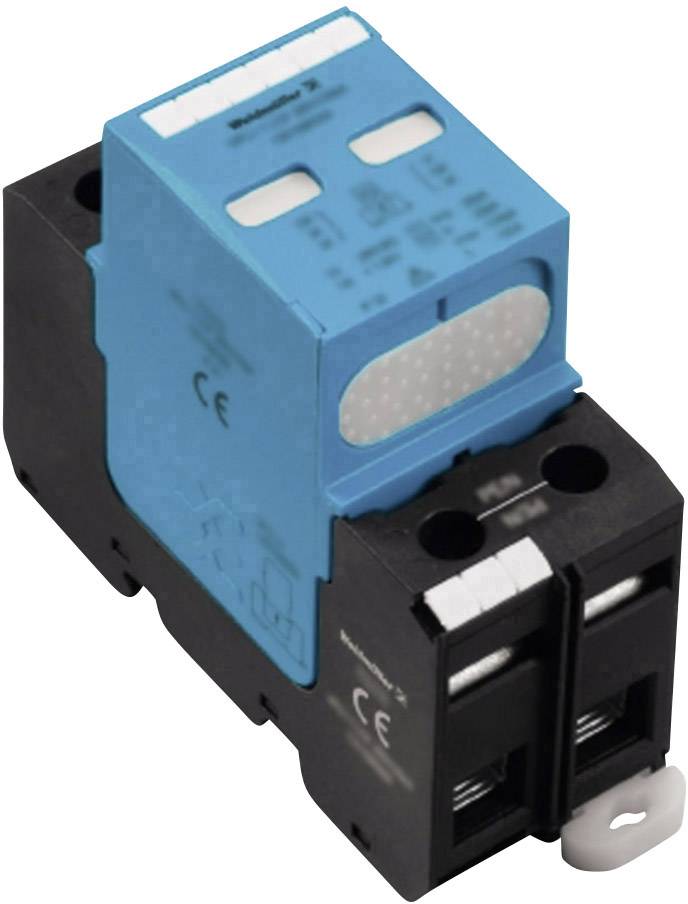

Weidmüller 1351970000 VPU I 1 N-PE 440V/100KA Surge arrester 100 kA 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Wire stripping length, measuring connection 15 mm
- Connection type: screw terminals.
- Tightening torque, max.: 3 Nm
- Tightening torque, min.: 2 Nm
- Design: Installation housing; 2 TE, Insta IP20
- Mounting dimensions height 75 mm
- Frequency range, max. 60 Hz
- Frequency range, min.: 50 Hz
- Maximum continuous voltage, UC (N-PE) 440 V.
- Clamping range, max. 35 mm²
- Clamping range, min. 4 mm²
- Storage temperature -40 °C to 80 °C.
- Conductor cross-section, single-wire, max. 16 mm²
- Conductor cross-section, fine strand, max. 25 mm²
- Conductor cross-section, multi-strand, max. 50 mm²
- Net weight 266 g
- Optical function display: No.
- Number of poles: 1
- Mounting rail TS 35
- Overvoltage category IV
- Pollution level 3
- Product type
Surge arrester
- Leakage current
100 kA
- Nominal voltage
400 V AC
- Pick-up time (details)
≤ 100 ns
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
1351970000
- Type
Type I, Type II
- Factory colour
Black
Blue
- Standards
IEC 61643, EN 61643
- Dim
(W x H x D) 35.6 x 94 x 69 mm
- Width
35.6 mm
- Height
94 mm
- Depth
69 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1912803 Weidmüller 1351970000 VPU I 1 N-PE 440V/100KA Surge arrester 100 kA 1 pc(s)
Description
Pluggable surge arrester from V0 Material for LPLI class I/II/III/IV with 100 kA Suitable for TN-S or TT, IT mains systems for the protection between N and PE.
