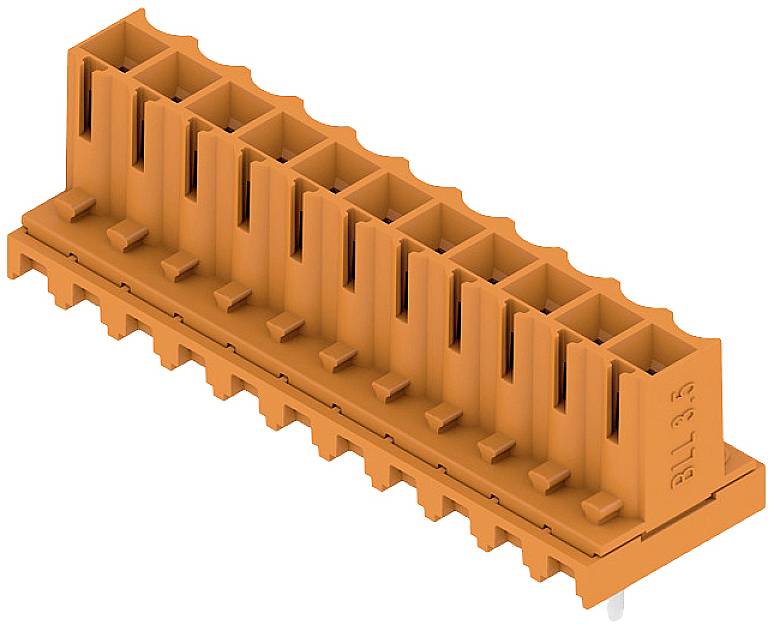

Weidmüller 1376370000 PCB connector Total number of pins 11 No. of rows 1 14 pc(s)
Product type
PCB connector
Total no. of pins
11
CS
3.5 mm
Content
14 pc(s)
Total number of pins
11
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total number of pins 11
- No. of rows 1
- Content 14 pc(s)
Our service for you
Technical specifications
- Depth: 11.85 mm
- PCB mounting: THT solder connection
- Outlet angle: 180°
- Number of solder pins per pin: 1
- Mounting hole diameter 1.3 mm
- Insulation material: PBT
- Storage temperature: -25 °C to +55 °C.
- Touch protection: IP20
- Insertion force/pole 8 N.
- Pulling power/pole: 7 N.
- Short-term current strength: 3 x 1s with 100 A.
- Solder pin length 3.2 mm
- Product type
PCB connector
- Total no. of pins
11
- Total number of pins
11
- No. of rows
1
- CS
3.5 mm
- Nominal current
9 A
- Nominal current - rounded value
9 A
- Pins per row
11
- Connection
THT
Soldering
- Factory colour
Orange
- Case material
PA
- Manufacturer part #
1376370000
- Content
14 pc(s)
- Contact material
CuSn
- Height
14.3 mm
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
BLL 3.50/11/180 3.2SN OR TU
- Dim
14.3 mm x 11.85
- Resistance
5 mΩ
- Insulation resistance
100 MΩ
- Connector contact surface
Tin plated
- Dimensions
14.3 mm x 11.85 mm
- Nominal voltage
300 V
- Number of pins
11
- RoHS-compliant
Yes
- Mating cycles
25
- Pin length
3.2 mm
- UKCA
not relevant
