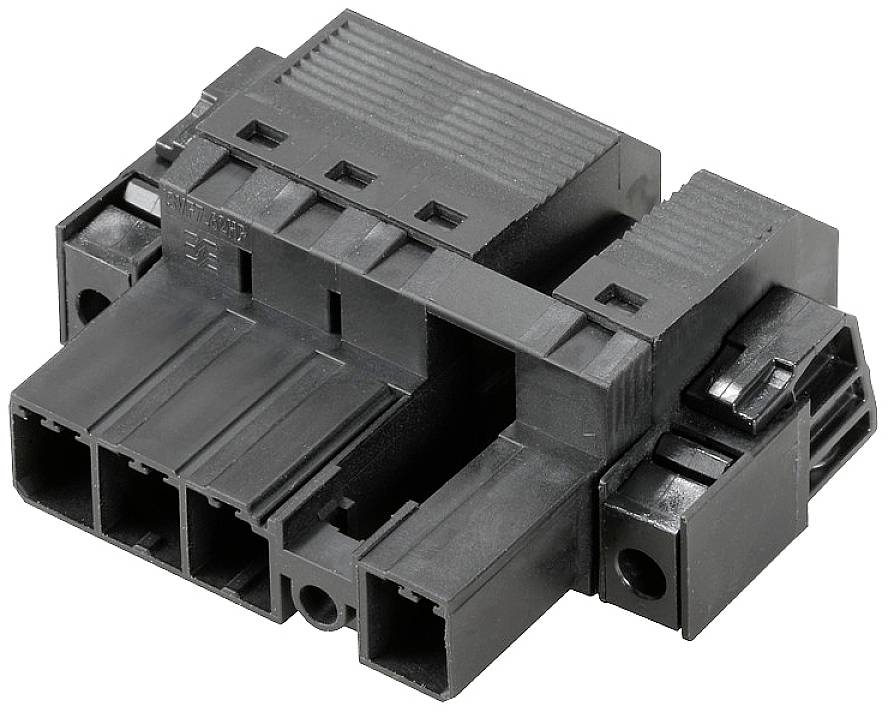

Weidmüller 1429920000 PCB connector Total number of pins 2 40 pc(s)
Product type
PCB connector
Total no. of pins
2
CS
7.62 mm
Content
40 pc(s)
Total number of pins
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total number of pins 2
- Content 40 pc(s)
Our service for you
Technical specifications
- Insulating material: PA GF
- Storage temperature: -25 °C to +55 °C.
- Stripped length: 12 mm
- Creepage distance min.: 12.7 mm
- Air distance min.: 12.7 mm
- Conductor connection technology: PUSH-IN
- Conductor outlet direction: 180°
- Touch protection: IP20 inserted
- Tightening torque screw flange: 0.2 Nm - 0.3 Nm
- Short-term current strength: 3 x 1s with 420 A.
- Product type
PCB connector
- Total no. of pins
2
- Total number of pins
2
- CS
7.62 mm
- Nominal current
39 A
- Nominal current - rounded value
39 A
- Connection
Push-in connector
- Factory colour
Black
- Case material
PA
- Manufacturer part #
1429920000
- Content
40 pc(s)
- Contact material
Copper
- Max. temperature
+125 °C
- Min. temperature
-50 °C
- Type
SVF 7.62HP/02/180SFBMF2 SN BK BX
24 AWG - 10 AWG
- Resistance
4.5 mΩ
- Insulation resistance
100 MΩ
- Clamping range diameter mm
0.5 mm² -10 °c mm²
- Connector contact surface
Tin plated
- Nominal voltage
600 V
- Number of pins
2
- RoHS-compliant
Yes
- Mating cycles
25
- UKCA
not relevant
