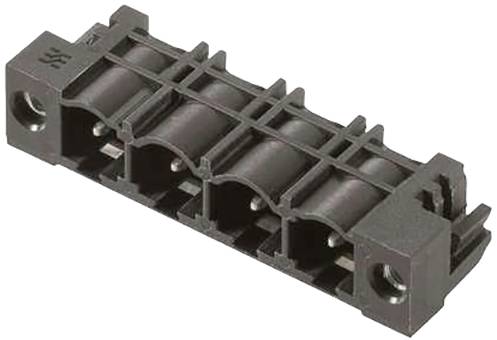

Weidmüller 1472430000 PCB connector Total number of pins 8 50 pc(s)
Product type
PCB connector
Total no. of pins
8
CS
7.62 mm
Content
50 pc(s)
Total number of pins
8
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total number of pins 8
- Content 50 pc(s)
Our service for you
Technical specifications
- Depth: 11.75 mm
- PCB mounting: THT solder connection
- Outlet angle: 270°
- Number of solder pins per pin: 1
- Mounting hole diameter 1.3 mm
- Insulating material: PA GF
- Storage temperature: -25 °C to +55 °C.
- Creepage distance min.: 8.1 mm
- Air distance min.: 6.5 mm
- Touch protection: IP20 inserted
- Tightening torque screw flange: 0.15 Nm - 0.25 Nm
- Short-term current strength: 3 x 1s with 180 A.
- Solder pin length 3.2 mm
- Product type
PCB connector
- Total no. of pins
8
- Total number of pins
8
- CS
7.62 mm
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Connection
THT
Soldering
- Factory colour
Black
- Case material
PA
- Manufacturer part #
1472430000
- Content
50 pc(s)
- Contact material
Copper
- Height
11.6 mm
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
SL 7.62HP/08/270LF 3.2SN BK BX
- Dim
11.6 mm x 11.75
- Insulation resistance
100 MΩ
- Dimensions
11.6 mm x 11.75 mm
- Nominal voltage
300 V
- Number of pins
8
- RoHS-compliant
Yes
- Mating cycles
25
- Pin length
3.2 mm
- UKCA
not relevant
