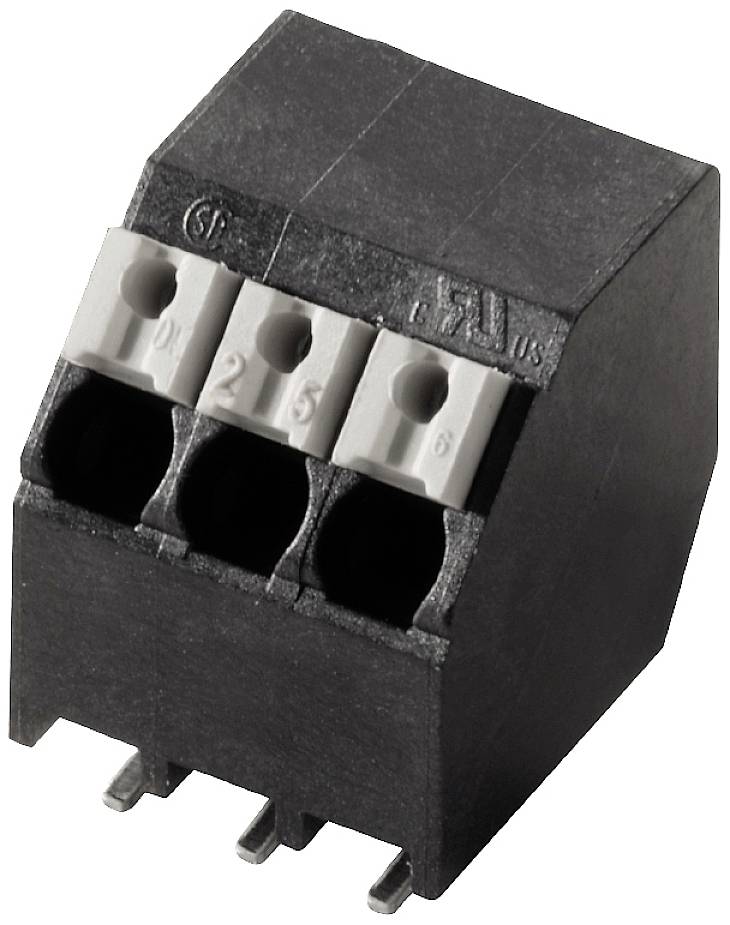

Weidmüller 1473370000 Screw terminal 1.5 mm² Number of pins 7 Black 210 pc(s)
Product type
Screw terminal
CS
3.5 mm
Pins per row
7
Number of pins
7
Connector orientation
At an angle (to the PCB)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Our service for you
Technical specifications
- Type
LSF-SMD 3.50/07/135 SN BK RL
- Product type
Screw terminal
- CS
3.5 mm
- No. of rows
1
- Pins per row
7
- Number of pins
7
- Series
LSF
- Min. stripping length
8 mm
- Stripping length (max.)
8 mm
- Nominal current
12 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
12 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
28
- Connector orientation
At an angle (to the PCB)
- AWG max.
14
- Contact material
Copper alloy
- Enclosure material
Plastic
- Factory colour
Black
- Actuation direction
At an angle (to the PCB)
- Weight
6.64 g
- Manufacturer part #
1473370000
- Content
210 pc(s)
- Nominal voltage
300 V
- Width
25.2 mm
- Height
14.45 mm
- Length
12.7 mm
- Type
LSF-SMD 3.50/07/135 SN BK RL
- UKCA
not relevant
