Name: Weidmüller 1496850000 KWN-M5/-16 45 Crimp cable lug 45 ° M5 16 mm² Hole Ø: 5.3 mm 100 pc(s)
Brand: Weidmüller
SKU: 1950385

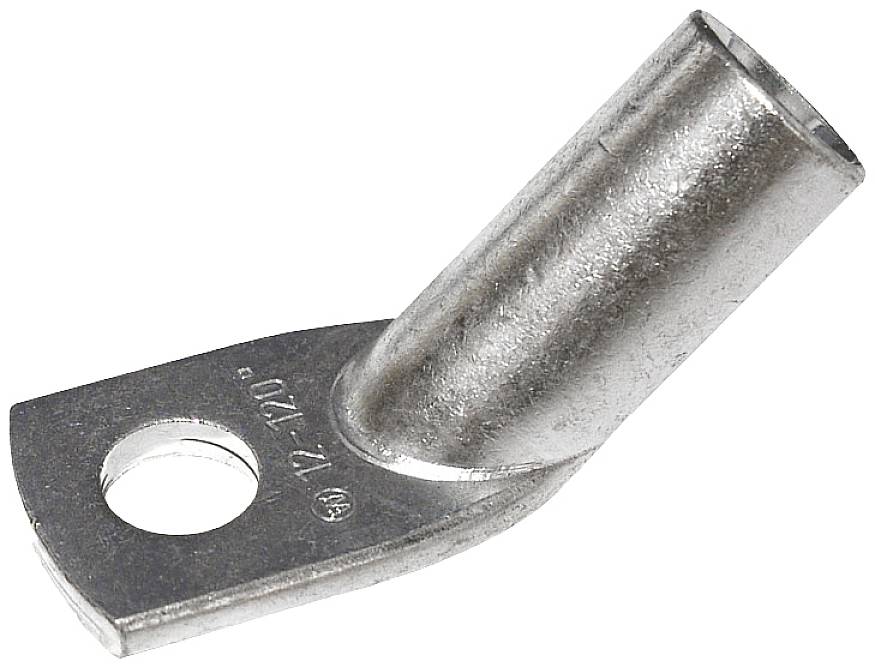

A silver metal cable lug with a fixing hole, slightly angled for better connection.

Product type

Crimp cable lug

max. cross section

16 mm²

Thread size

Hole Ø

5.3 mm

Content

100 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Hole Ø: 5.3 mm
Cross section (max.): 16 mm²

Our service for you

Technical specifications

Weight: 0.95 g
Outer diameter Shaft (D3): 8.5 mm
Flange width (b): 12 mm
Inner diameter Shaft (D1): 5.5 mm
Shaft length (a): 12 mm

Product type: Crimp cable lug

max. cross section: 16 mm²

Thread size: M5

Hole Ø: 5.3 mm

Connection angle: 45°

Content: 100 pc(s)

Manufacturer part #: 1496850000

Insulation type: Not insulated

RoHS-compliant: Yes

Type: KWN-M5/-16 45

UKCA: not relevant
