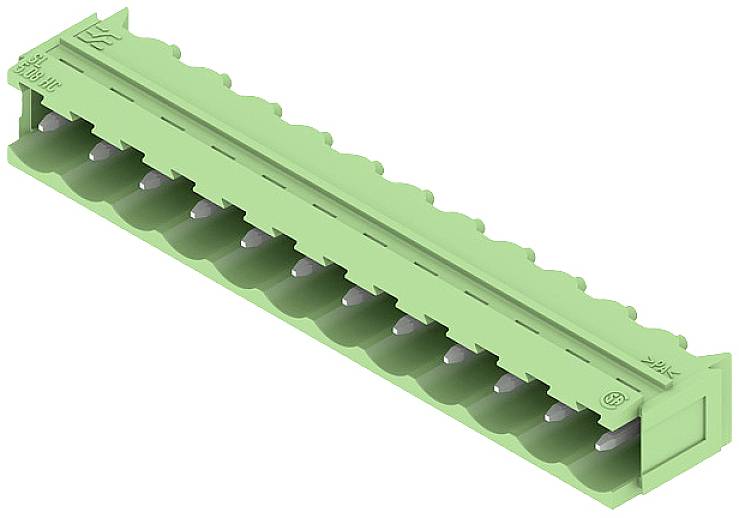

Weidmüller 1526300000 PCB connector Total number of pins 12 50 pc(s)
Product type
PCB connector
Total no. of pins
12
CS
5.08 mm
Content
50 pc(s)
Total number of pins
12
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total number of pins 12
- Content 50 pc(s)
Our service for you
Technical specifications
- Depth: 12 mm
- PCB mounting: THT solder connection
- Departure angle: 90°
- Number of solder pins per pin: 1
- Mounting hole diameter 1.3 mm
- Insulation material: PBT
- Storage temperature: -25 °C to +55 °C.
- Touch protection: IP20 inserted
- Short-term current strength: 3 x 1s with 120 A.
- Solder pin length 3.2 mm
- Product type
PCB connector
- Total no. of pins
12
- Total number of pins
12
- CS
5.08 mm
- Nominal current
15 A
- Nominal current - rounded value
15 A
- Connection
THT
Soldering
- Factory colour
Green
- Case material
PA
- Manufacturer part #
1526300000
- Content
50 pc(s)
- Contact material
CuSn
- Width
62.96 mm
- Height
11.6 mm
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
SL 5.08HC/12/90B 3.2SN GN BX
- Dim
(W x H) 62.96 mm x 11.6 mm
- Resistance
5 mΩ
- Insulation resistance
100 MΩ
- Dimensions
62.96 mm x 11.6 mm x 12 mm
- Nominal voltage
300 V
- Number of pins
12
- RoHS-compliant
Yes
- Mating cycles
25
- Pin length
3.2 mm
- UKCA
not relevant
