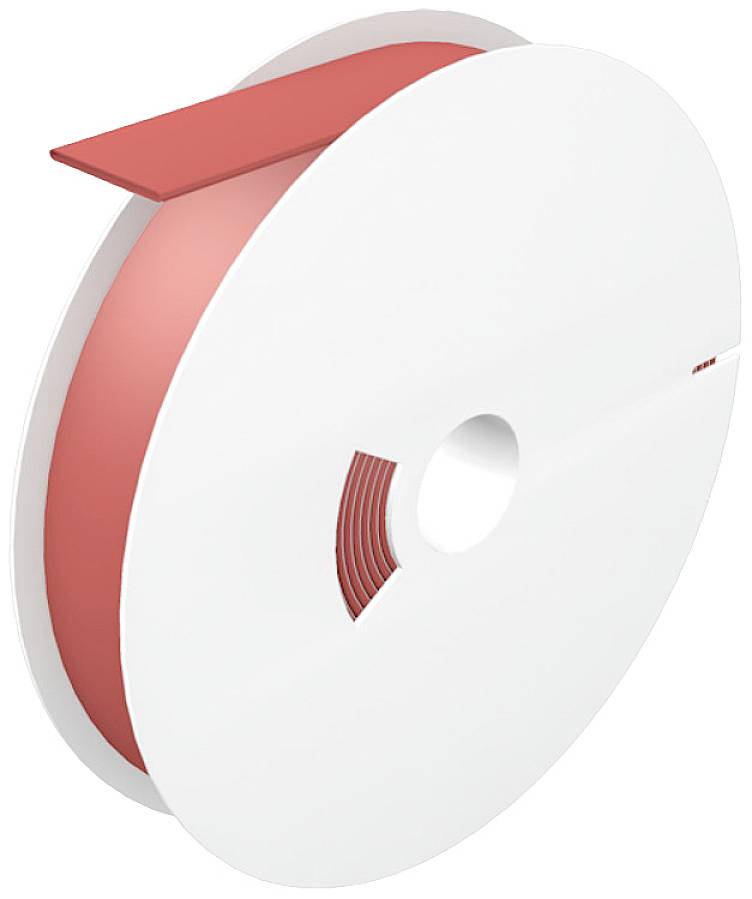

Weidmüller 1562830000 HSS-HF 12.7-25.4EL R30M Cable markers Red 1 pc(s)
Product type
Cable markers
Type
HSS-HF 12.7-25.4EL R30M
Material
Polyolefin
Series
HSS-HF
Min. temperature
-55 °C
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Depth: 1.5 mm
- Net weight: 2,274 g
- conductor cross-section, max.: 120 mm²
- conductor cross-section, min.: 35 mm²
- Type
HSS-HF 12.7-25.4EL R30M
- Product type
Cable markers
- Material
Polyolefin
- Series
HSS-HF
- Min. temperature
-55 °C
- Max. temperature
+105 °C
- Suitable for outside Ø (min.)
12.7 mm
- Suitable for outside Ø (max.)
25.4 mm
- Factory colour
Red
- Dim
(L x W) 30 m x 40.5 mm
- Halogen-free
Yes
- Content
1 pc(s)
- Dimensions
30000 x 40.5 mm
- Width
40.5 mm
- Length
30 m
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1916312 Weidmüller 1562830000 HSS-HF 12.7-25.4EL R30M Cable markers Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1916312 Weidmüller 1562830000 HSS-HF 12.7-25.4EL R30M Cable markers Red 1 pc(s)
Description
Cable marking system, 12.7 - 25.4 mm, 30000 x 40.5 mm, cross-linked polyolefin, red
