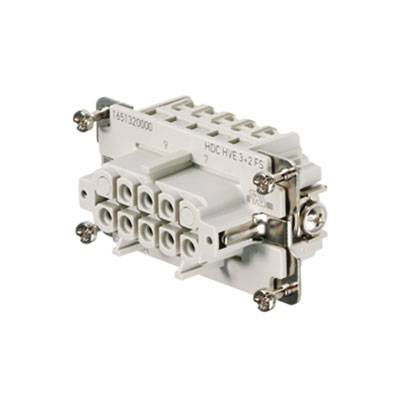

Weidmüller 1651320000 Socket inset RockStar® HDC HVE 3 + 2 + PE Screws 1 pc(s)
Product type
Socket inset
Connection
Screws
Series
RockStar® HDC HVE
Features
copper-plated
Total no. of pins
3 + 2 + PE
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Socket insert
- HDC HVE 3+2 FS
Technical specifications
- Net weight: 56 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 34 mm
- Height: 35.2 mm
- Depth: 64 mm
- Height Socket: 35.2 mm
- Length Socket: 64 mm
- Size: 4
- Series: HVE
- Rated voltage (DIN EN 61984): 830 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 8 kV
- Rated current (DIN EN 61984): 20 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 2MΩ
- Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- Connection type PE: Screw connection
- conductor cross-section AWG (PE), max.: AWG 12
- conductor cross-section AWG (PE), min.: AWG 20
- stripping length Rated connection: 9 mm
- Wire stripping length PE connection: 10 mm
- max. 1.5 Nm
- Tightening torque min. PE connection: 1.2 Nm
- Mounting screw: M 4
- Cross-head blade dimension: GR. PH1
- Slotted blade dimension (PE connection): SD 0.8 x 4.0
- Surface: Silver passivated
- Material: Copper alloy
- Blade dimension Slotted (screw connection): SD 0.6 x 3.5
- Number of power contacts: 3
- Product type
Socket inset
- Series
RockStar® HDC HVE
- Features
copper-plated
- Connection
Screws
- Total no. of pins
3 + 2 + PE
- Core cross section (max.)
2.5 mm²
- Number of pins
3
2
- Core cross section (min.)
0.5 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202864 Weidmüller 1651320000 Socket inset RockStar® HDC HVE 3 + 2 + PE Screws 1 pc(s)
User & Safety Instructions
User & Safety Instructions 202864 Weidmüller 1651320000 Socket inset RockStar® HDC HVE 3 + 2 + PE Screws 1 pc(s)
Description
Socket insert. HDC-insert, female, 830 V, 20 A, 5 pins, screw connection, size: 4. The high-voltage inserts the PDB series are equipped with two pursuing contacts. The Conductor Connection level is designed as a screw element. All screw connection elements are equipped with a wire protection spring. Number of pins: 5, Rated current 24 A, rated voltage 830 V, rated voltage according to UL/CSA: 600 V AC/DC, screw connection.
