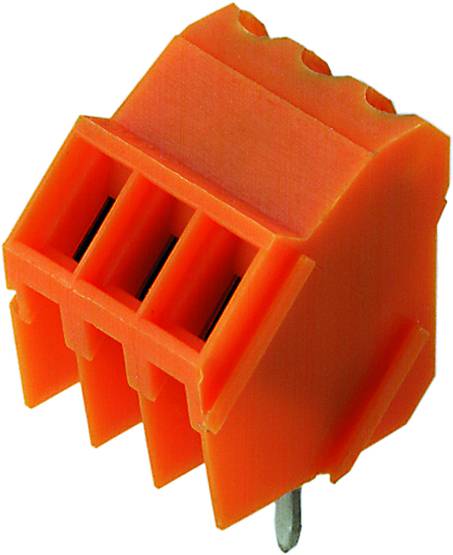

Weidmüller 1845300000 Screw terminal 1.5 mm² Number of pins 12 Orange 50 pc(s)
Product type
Screw terminal
CS
3.5 mm
Pins per row
12
Number of pins
12
Connection
Print
Screw terminal
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Screw terminal block
- Content 50 pc(s)
Our service for you
Technical specifications
- Type
LM 3.50/12/135 3.2SN OR BX
- Product type
Screw terminal
- CS
3.5 mm
- No. of rows
1
- Pins per row
12
- Number of pins
12
- Series
LM
- Min. stripping length
5 mm
- Stripping length (max.)
5 mm
- Connection
Print
Screw terminal
- Nominal current
10 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
10 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
28
- Connector orientation
At an angle (to the PCB)
- AWG max.
14
- Contact material
Cu-alloy, tin plated
- Factory colour
Orange
- Wire protection
Yes
- Actuation direction
At an angle (to the PCB)
- Weight
7.7 g
- Manufacturer part #
1845300000
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
300 V
- Width
42.6 mm
- Height
15.9 mm
- Length
12.7 mm
- Type
LM 3.50/12/135 3.2SN OR BX
