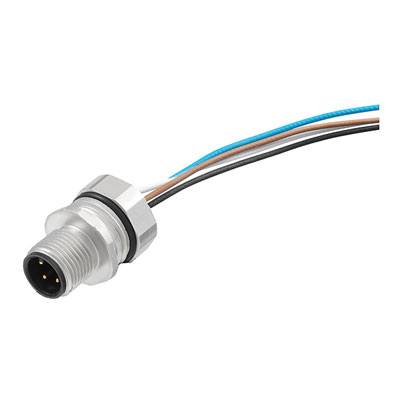

Weidmüller 1861160000 Sensor/actuator built-in connector M12 Plug, mount No. of pins (RJ): 4 1 pc(s)
Product type
Sensor/actuator built-in connector
Connector type
Plug, mount
Connection side A
Cable, open end
Connection side B
M12 plug, built-in
No. of pins
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Installation plug
- SAIE-M 12S -4-0.5U-FP-M16
Technical specifications
- Type
SAIE-M12S-4-0.5U-FP-M16
- Product type
Sensor/actuator built-in connector
- Connector type
Plug, mount
- Connection side A
Cable, open end
- Connection side B
M12 plug, built-in
- No. of pins
4
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.34 mm²
- Connection
Open end cable
- Thread type connection side
M12
IP67
- Min. temperature
-30 °C
- Max. temperature
+90 °C
- Seal type
Screw-on
- Manufacturer part #
1861160000
- Content
1 pc(s)
- RoHS-compliant
Yes
Front mounting
Polyvinyl chloride (PVC)
250 V
0.5 m
4
Brass
Nickel-plated
-30-90 °C
Gold
IP67
4 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204314 Weidmüller 1861160000 Sensor/actuator built-in connector M12 Plug, mount No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204314 Weidmüller 1861160000 Sensor/actuator built-in connector M12 Plug, mount No. of pins (RJ): 4 1 pc(s)
Description
Built-in plug. M12, pin, straight, M16, poles: 4, 0.5 m.
