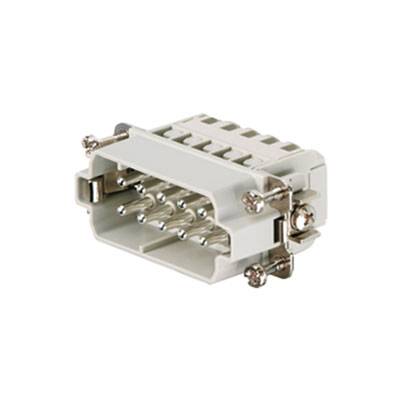

Weidmüller 1896790000 Pin inset RockStar® HDC HA 10 + PE Pull spring 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Pull spring
Series
RockStar® HDC HA
Features
copper-plated
Total no. of pins
10 + PE
Datasheet (PDF)
Highlights & Details
Pin insert
- HDC HA 10 MT
Technical specifications
- Net weight: 43 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 23 mm
- Height: 29 mm
- Depth: 56.6 mm
- Length Socket: 56.6 mm
- Size: 2
- Series: HA
- Rated voltage (DIN EN 61984): 250 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 4 kV
- Rated current (DIN EN 61984): 16 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 2MΩ
- Insulation material: PC glass-fiber reinforced (UL-listed and railway-qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- Connection type PE: Screw connection
- conductor cross-section AWG (PE), max.: AWG 14
- conductor cross-section AWG (PE), min.: AWG 20
- stripping length Rated connection: 8 mm
- Wire stripping length PE connection: 10 mm
- max. 1.5 Nm
- Tightening torque min. PE connection: 1.2 Nm
- Mounting screw: M 4
- Cross-head blade dimension: GR. PH1
- Slotted blade dimension (PE connection): SD 0.8 x 4.0
- Surface: Silver passivated
- Material: Copper alloy
- Slotted blade dimension (screw connection): SD 0.5 x 3.0
- Height of plug: 29 mm
- Product type
Pin inset
- Series
RockStar® HDC HA
- Features
copper-plated
- Connection
Pull spring
- Total no. of pins
10 + PE
- Core cross section (max.)
2.5 mm²
- Number of pins
10
- Core cross section (min.)
0.25 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
23
29 mm
56.6 mm
250 V
10
Pin
-40-125 °C
V0
4 kV
Spring clamp connection
Silver
3
0.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
0.25-2.5 mm²
TRUE
Other copper alloys
16 A
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204603 Weidmüller 1896790000 Pin inset RockStar® HDC HA 10 + PE Pull spring 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204603 Weidmüller 1896790000 Pin inset RockStar® HDC HA 10 + PE Pull spring 1 pc(s)
Description
Pin insert. HDC-Use, pin, 250 V, 22 A, number of poles: 10, spring-cage connection, size: 2. The small and narrow HA series is used, for example, where the space is limited. The Conductor Connection level is designed as a tension spring element. This makes it virtually maintenance-free and there is a safe and permanent connections, which are vibration-proof. Number of poles: 10, rated current 22 A, rated voltage 250 V, rated voltage according to UL/CSA: 600 V AC/DC, spring-cage connection.
