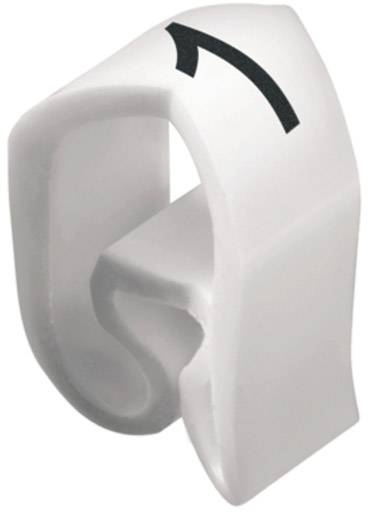

Weidmüller 1912800000 CLI C 3-33 SDR SG Cable markers No. of markers: 100 100 pc(s)
Product type
Cable markers
Type
CLI C 3-33 SDR SG
Material
PVC
Features
UL94 flammability rating
Series
CLI C
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Cable marking system
Our service for you
Technical specifications
- Depth: 17 mm
- Net weight: 4.125 g
- Flammability class according to UL 94: V-0
- Printing method: Ink-jet process
- Wire connection cross-section, max.: 70 mm²
- Wire connection cross-section, min.: 16 mm²
- Print color: Black
- Printing: Special printing
- Orientation of the imprint: Horizontal
- Type
CLI C 3-33 SDR SG
- Product type
Cable markers
- Material
PVC
- Features
UL94 flammability rating
- Series
CLI C
- Max. temperature
+80 °C
- Suitable for outside Ø (min.)
8 mm
- Suitable for outside Ø (max.)
16 mm
- No. of markers
100
- Dim
(W x H) 11 mm x 33 mm
- Type
Wire and Cable Markers for fixing with cable ties. The halogen-free and low-emission lead marker corresponds to European standards.
- Halogen-free
Yes
- Content
100 pc(s)
- Dimensions
17 mm
- Width
11 mm
- Height
33 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1914859 Weidmüller 1912800000 CLI C 3-33 SDR SG Cable markers No. of markers: 100 100 pc(s)
User & Safety Instructions
User & Safety Instructions 1914859 Weidmüller 1912800000 CLI C 3-33 SDR SG Cable markers No. of markers: 100 100 pc(s)
Description
Cable marking system, 8 - 16 mm, 11 mm, printed characters: according to customer requirements, special printing, PVC, soft, without cadmium, according to customer requirements
