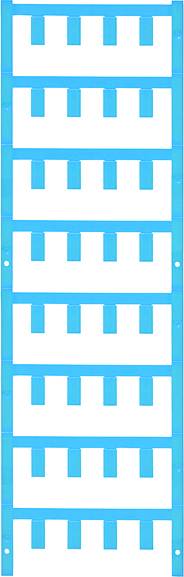

Weidmüller 1919590000 SF 4/12 NEUTRAL BL V2 Lead marker Fitting type: Clip Writing area: 5.70 x 12 mm Blue No. of marker
Product type
Lead marker
Fitting type
Clip
Writing area length
5.70 mm
Writing area width
12 mm
Type
SF 4/12 NEUTRAL BL V2
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Lead marker SlimFix multi-card
Our service for you
Technical specifications
- Depth: 6.1 mm
- Net weight: 0.648 g
- flammability class according to UL 94: V-2
- Material color according to resistance code: 6
- conductor cross-section, max.: 4 mm²
- conductor cross-section, min.: 2.5 mm²
- Type
SF 4/12 NEUTRAL BL V2
- Product type
Lead marker
- Fitting type
Clip
- Writing area length
5.70 mm
- Writing area width
12 mm
- Writing area
5.70 x 12 mm
- Material
PA66
- Suited for series
Single wires
- Features
Printable
Halogen-free
UL94 flammability rating
- Series
SF
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Suitable for outside Ø (min.)
3.6 mm
- Suitable for outside Ø (max.)
6 mm
- Factory colour
Blue
- No. of markers
128
- Dim
(L x W x H) 12 x 5.7 x 12 mm
- Industrial packaging
Yes
- Content
128 pc(s)
- Width
5.7 mm
- Height
12 mm
- Length
12 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 365918 Weidmüller 1919590000 SF 4/12 NEUTRAL BL V2 Lead marker Fitting type: Clip Writing area: 5.70 x 12 mm Blue No. of marker
User & Safety Instructions
User & Safety Instructions 365918 Weidmüller 1919590000 SF 4/12 NEUTRAL BL V2 Lead marker Fitting type: Clip Writing area: 5.70 x 12 mm Blue No. of marker
Description
Slim Fix-Leitermarkierer the SF/SFR-items are true all-rounder when it comes to hardness requirements. In the rail transport technology recognized and listed marker than 12 or 21 mm long sleeve available and are suitable for use in areas with vibration effect. Thanks to its narrow zuschnitts and its compact design, the sleeves very firmly to the head and ensure the mounting result optimized cross-sectional areas and a secure marking. While the SF-series in the diameter range from 1.0 to 7.8 mm through the use of the specialized SF-tools is attached, the SFR-series with conductor diameters of 1.7 - 3.7 mm using the tool-free assembly by hand, without compromising the perfect adhesion properties.
This text is machine translated.
