Weidmüller 1930020000 PCB connector Total number of pins 10 No. of rows 1 1 pc(s)
Product type
PCB connector
Total no. of pins
10
CS
7.62 mm
Content
1 pc(s)
Total number of pins
10
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

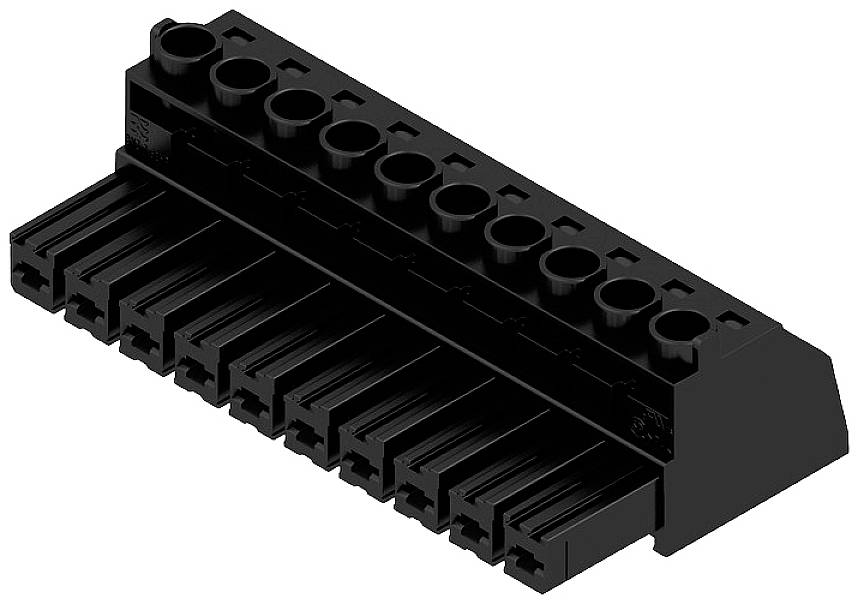

Weidmüller PCB connector BVZ 7.62HP/10/180 SN BK BX
- Total number of pins 10
- No. of rows 1
- Content 1 pc(s)
Technical specifications
- Insulation material PA GF
- Storage temperature: -25 °C to +55 °C.
- Stripped length: 12 mm
- Tightening torque 0.5 Nm - 0.6 Nm
- M3 terminal screws
- Creepage distance. min. 13.8 mm
- Air distance. min. 10.2 mm
- Conductor connection: Strain relief connection
- Conductor departure direction 180°
- Contact protection IP20
- Plug-in power/pin 16.5 N
- Pull force/pin 11 N
- Short-term current strength 3 x 1s with 420 A
- Mandrel 2.8 mm x 2 mm, 2.4 mm
- Contact base material: Copper alloy
- Product type
PCB connector
- Total no. of pins
10
- Total number of pins
10
- No. of rows
1
- CS
7.62 mm
- Nominal current
40.5 A
- Nominal current - rounded value
40.5 A
- Pins per row
10
- Connection
Screws
Plug
- Factory colour
Black
- Case material
PA
- Manufacturer part #
1930020000
- Content
1 pc(s)
- Contact material
Copper
- Max. temperature
+125 °C
- Min. temperature
-50 °C
- Type
BVZ 7.62HP/10/180 SN BK BX
24 AWG - 8 AWG
- Resistance
4.5 mΩ
- Insulation resistance
100 MΩ
- Clamping range diameter mm
0.2 mm² - 10 mm²
- Connector contact surface
Tin plated
- Nominal voltage
600 V
- Number of pins
10
- Cross section
6 mm²
- RoHS-compliant
Yes
- Mating cycles
25
- UKCA
yes
