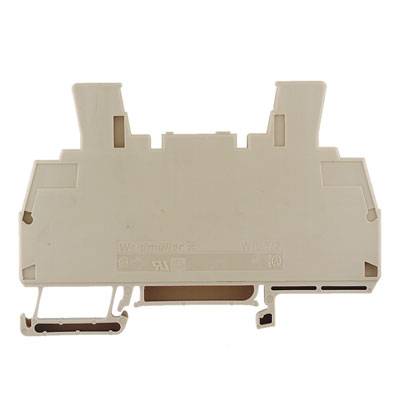

Weidmüller 1938820000 Serial test terminal Screws Dark beige 50 pc(s)
Product type
Serial test terminal
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Content
50 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Checks racing series terminal
Our service for you
Technical specifications
- Product type
Serial test terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Factory colour
Dark beige
- Manufacturer part #
1938820000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
WTL 6/1/STB/TNSC/EN
- Dim
(L x W x H) 65 x 7.9 x 66.5 mm
- Width
7.9 mm
- Height
66.5 mm
- Length
65 mm
- RoHS-compliant
Yes
- Weight
26.34 g
- Type
6/1/STB WTL/TNSC/EN
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 376342 Weidmüller 1938820000 Serial test terminal Screws Dark beige 50 pc(s)
User & Safety Instructions
User & Safety Instructions 376342 Weidmüller 1938820000 Serial test terminal Screws Dark beige 50 pc(s)
Description
Checks racing series terminal. In order to measure the electrical energy, appropriate measuring devices. A wrong connection during maintenance work can destroy a current transformer. Instrument isolating terminals are a safe method to solve this problem. As a leading supplier of cable connectors Weidmüller has special transducer disconnect terminals in close cooperation with users. These terminals allow optimum implementation of all the major circuits for measuring current, voltage and power. The various power converter circuits - e.g. for the exchange of measuring instruments or electricity meters - can be implemented. In addition to instrument isolating terminals with screw or spring-cage connection offers an extensive range of accessories to test adapters, Weidmüller cross-connections and labels for the testing of rotation and alternating current and voltages.
