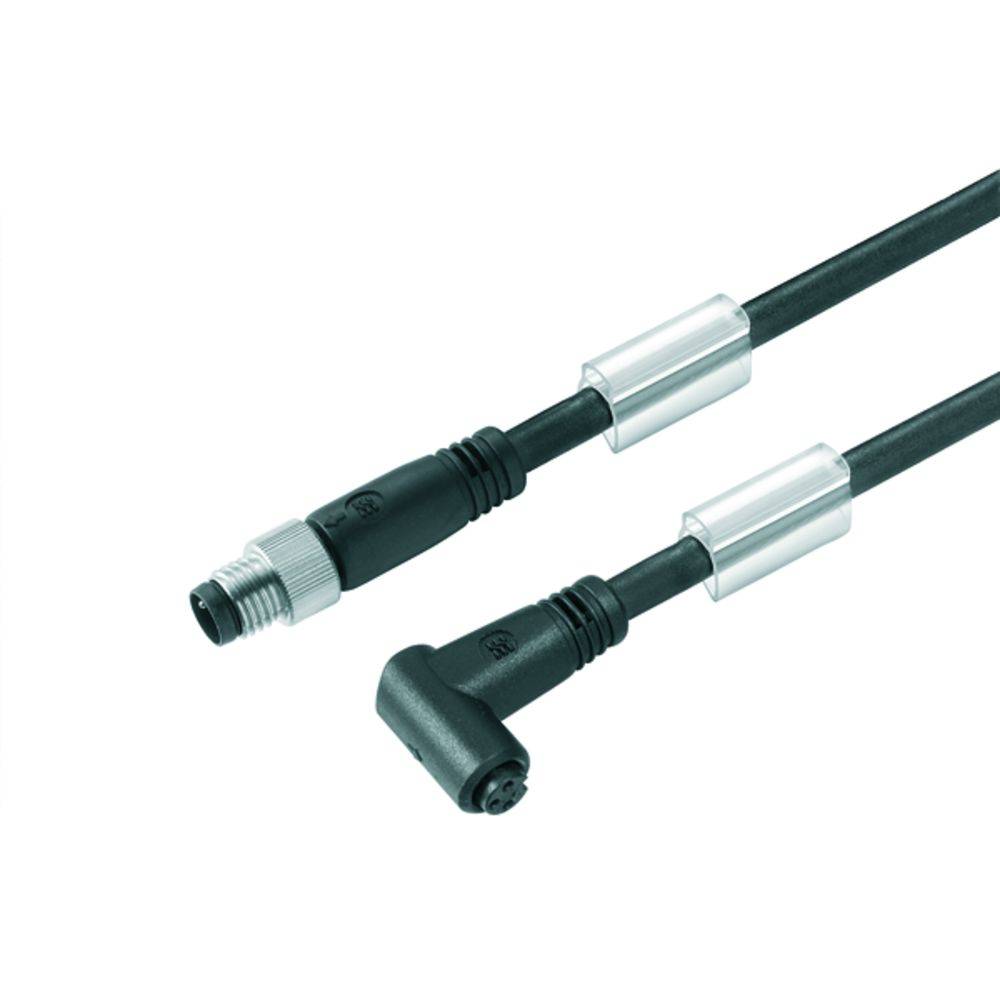

Weidmüller 1948480300 Sensor/actuator connector (pre-fab) M8 Plug, straight, Socket, right angle 3.00 m No. of pins (RJ)
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug, straight
Socket, right angle
Connector standard
Sensor connector
Connection side A
M8 socket, right angle
Connection side B
M8 socket, right angle
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Connecting cable
- SAIL-M8 GM 8 WR-3-3.0 U
Technical specifications
- Type
SAIL-M8GM8WR-3-3.0U
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Plug, straight
Socket, right angle
- Connector standard
Sensor connector
- Connection side A
M8 socket, right angle
- Connection side B
M8 socket, right angle
- No. of pins
3
- Cable length
3.00 m
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Thread type connection side
M8
- Min. temperature
-30 °C
- Max. temperature
+90 °C
- Seal type
Screw-on
- Manufacturer part #
1948480300
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 255909 Weidmüller 1948480300 Sensor/actuator connector (pre-fab) M8 Plug, straight, Socket, right angle 3.00 m No. of pins (RJ)
User & Safety Instructions
User & Safety Instructions 255909 Weidmüller 1948480300 Sensor/actuator connector (pre-fab) M8 Plug, straight, Socket, right angle 3.00 m No. of pins (RJ)
Description
Connection cable. M8/M8, pin, straight-Bush, angled: No, PUR, halogens: No, poles: 3, shielded: No, 3 m. Sensor/actuator cables are used for the wiring of sensors and actuators, and to transfer data or performance in different applications. The molded cable offers a factory connected and tested the connection of the connector to the cable. The lines can be exposed to a wide range of conditions, such as: moisture, dust, heat, cold, shock or vibration. Exactly at this point, our developers and a wide variety of different M8 and M12 sensor/actuator cables designed that also make sure exactly what you need for your application.
