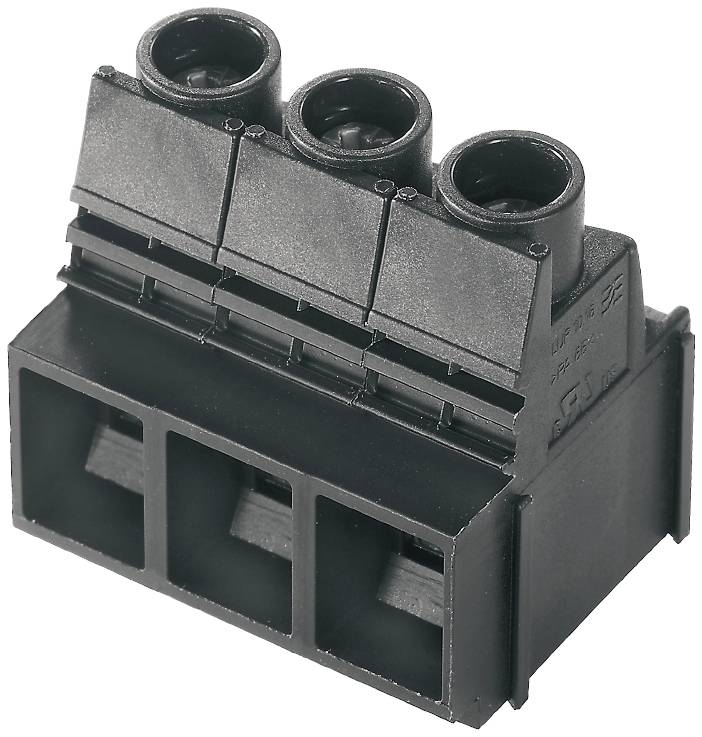

Weidmüller 2013890000 Screw terminal 16 mm² Number of pins 6 Black 20 pc(s)
Product type
Screw terminal
CS
10.16 mm
Pins per row
6
Number of pins
6
Connection
Print
Screw terminal
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Our service for you
Technical specifications
- Type
LUP 10.16/06/90V 5.0SN BK BX
- Product type
Screw terminal
- CS
10.16 mm
- No. of rows
1
- Pins per row
6
- Number of pins
6
- Series
LUP
- Min. stripping length
12 mm
- Stripping length (max.)
12 mm
- Connection
Print
Screw terminal
- Nominal current
51 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
51 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
22
- Connector orientation
Parallel (to the PCB)
- AWG max.
6
- Contact material
Cathode copper, tin plated
- Factory colour
Black
- Weight
55.26 g
- Manufacturer part #
2013890000
- Content
20 pc(s)
- Nominal voltage
600 V
- Width
61.76 mm
- Height
36.5 mm
- Length
25.1 mm
- Type
LUP 10.16/06/90V 5.0SN BK BX
- UKCA
not relevant
