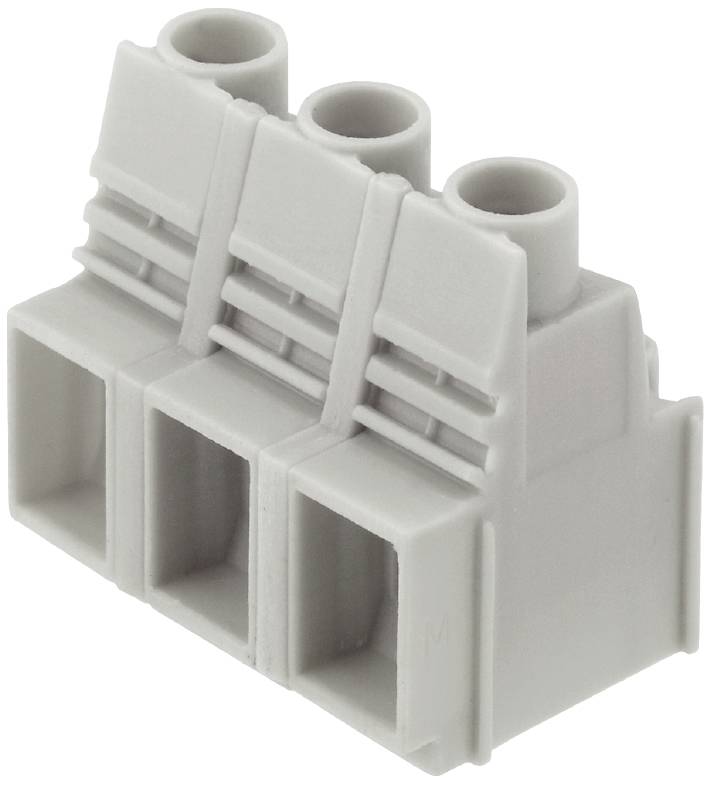

Weidmüller 2015160000 Screw terminal 16 mm² Number of pins 3 Pebble grey 20 pc(s)
Product type
Screw terminal
CS
12.7 mm
Pins per row
3
Number of pins
3
Connection
Print
Screw terminal
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Content 20 pc(s)
Our service for you
Technical specifications
- Type
LUP 12.70/03/90 5.0SN GY BX
- Product type
Screw terminal
- CS
12.7 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Series
LUP
- Min. stripping length
12 mm
- Stripping length (max.)
12 mm
- Connection
Print
Screw terminal
- Nominal current
65 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
65 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
22
- Connector orientation
Parallel (to the PCB)
- AWG max.
6
- Contact material
Cathode copper, tin plated
- Factory colour
Pebble grey
- Weight
29.96 g
- Manufacturer part #
2015160000
- Content
20 pc(s)
- Nominal voltage
600 V
- Width
36.36 mm
- Height
36.5 mm
- Length
25.1 mm
- Type
LUP 12.70/03/90 5.0SN GY BX
- UKCA
not relevant
