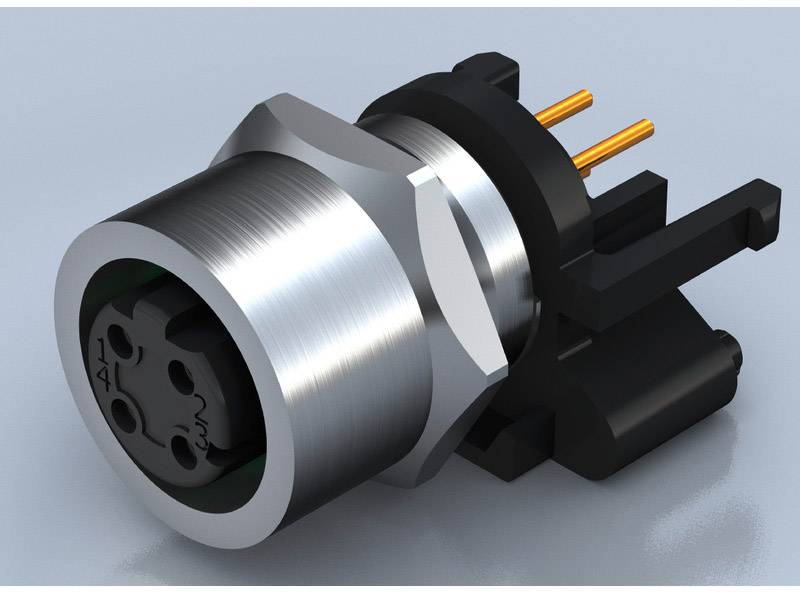

Image similar
Weidmüller 2424140000 Sensor/actuator connector M12 Socket, built-in No. of pins (RJ): 4 10 pc(s)
Product type
Sensor/actuator connector
Connector type
Socket, built-in
Connector standard
Sensor connector
No. of pins
4
Nominal voltage
250 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Sensor/actuator connector, assembled SAIE-M12BD-4-F10TL
Our service for you
Technical specifications
- Type
SAIE-M12BD-4-F10TL
- Product type
Sensor/actuator connector
- Connector type
Socket, built-in
- Connector standard
Sensor connector
- No. of pins
4
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
M12 socket
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
D
- Contact material
CuZn
- Contact surface
Au (gold)
- Sensor/actuator connectivity fittings
Front panel fitting
- Manufacturer part #
2424140000
- Content
10 pc(s)
- RoHS-compliant
Yes
- Total number of pins
4
- Connector contact surface
Au (gold)
- Case material
CuZn, Ni-plated
- UKCA
not relevant
