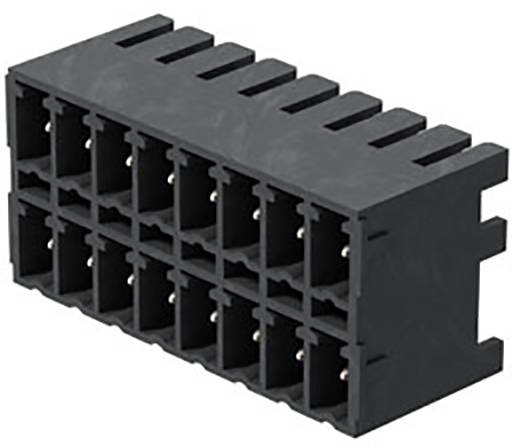

Weidmüller 2458520000 PCB connector Total number of pins 8 No. of rows 2 170 pc(s)
Product type
PCB connector
Total no. of pins
8
CS
3.81 mm
Content
170 pc(s)
Total number of pins
8
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total number of pins 8
- No. of rows 2
- Content 170 pc(s)
Our service for you
Technical specifications
- Depth: 13.3 mm
- PCB mounting: THT/THR solder connection
- Departure angle: 90°
- Number of solder pins per pin: 1
- Mounting hole diameter 1.3 mm
- Insulating material: LCP GF
- Storage temperature: -25 °C to +55 °C.
- Touch protection: IP20
- Short-term current strength: 3 x 1s with 76 A.
- Soldering pin length 1.5 mm
- External diameter of solder pad: 2.1 mm
- Template hole diameter 1.9 mm
- Product type
PCB connector
- Total no. of pins
8
- Total number of pins
8
- No. of rows
2
- CS
3.81 mm
- Nominal current
11 A
- Nominal current - rounded value
11 A
- Pins per row
4
- Connection
THT
THR
Soldering
- Factory colour
Black
- Case material
PA
- Manufacturer part #
2458520000
- Content
170 pc(s)
- Contact material
Copper
- Width
16.63 mm
- Height
16.7 mm
- Max. temperature
+120 °C
- Min. temperature
-50 °C
- Type
SCDN-THR 3.81/08/90G 1.5SN BK RL
- Dim
(W x H) 16.63 mm x 16.7 mm
- Resistance
5 mΩ
- Insulation resistance
100 MΩ
- Connector contact surface
Tin plated
- Dimensions
16.63 mm x 16.7 mm x 13.3 mm
- Nominal voltage
300 V
- Number of pins
8
- RoHS-compliant
Yes
- Mating cycles
25
- Pin length
1.5 mm
- UKCA
not relevant
