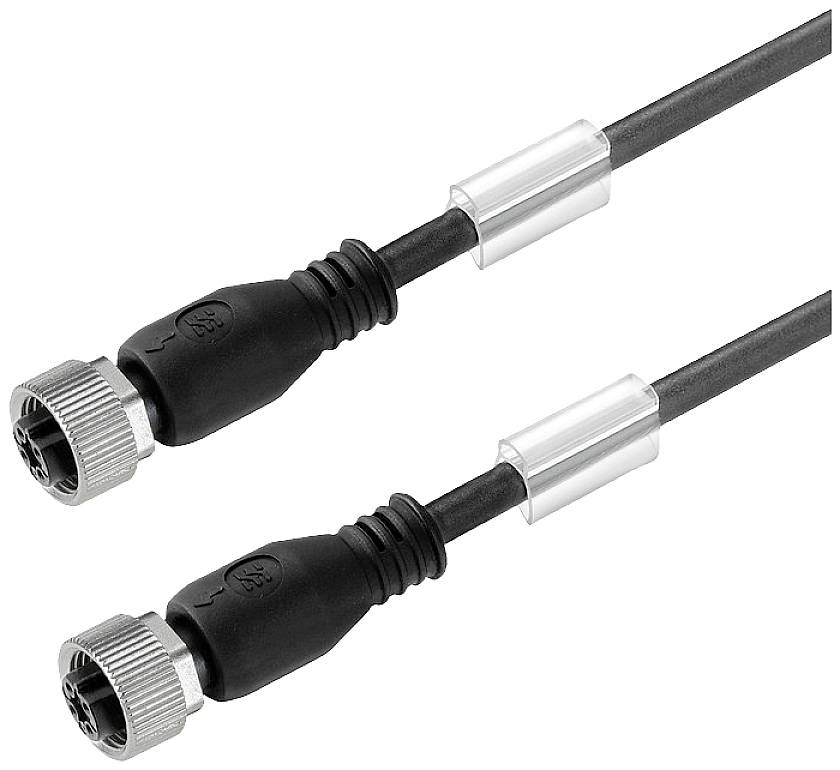

Weidmüller 2485140400 Sensor/actuator cable M12 4.00 m No. of pins (RJ): 5 1 pc(s)
Product type
Sensor/actuator cable
Connector standard
Sensor connector
Connection side A
M12 socket, straight
Connection side B
M12 plug, straight
No. of pins
5
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
SAIL-M12BGM12G-5S4.0U
- Product type
Sensor/actuator cable
- Connector standard
Sensor connector
- Connection side A
M12 socket, straight
- Connection side B
M12 plug, straight
- No. of pins
5
- Cable length
4.00 m
- Jacket material
PUR
- Nominal voltage
125 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Outside Ø
5.70
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Factory colour
Black
- Thread type connection side
M12
- Coding
A
- Contact surface
Gold plated
- Features
Halogen-free
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Manufacturer part #
2485140400
- Content
1 pc(s)
- RoHS-compliant
Yes
TRUE
Multi-core
60 V
4 m
TRUE
5
-25-80 °C
-40-80 °C
0 mΩ
Gold
IP65
M12
M12
FALSE
4 A
- UKCA
yes
