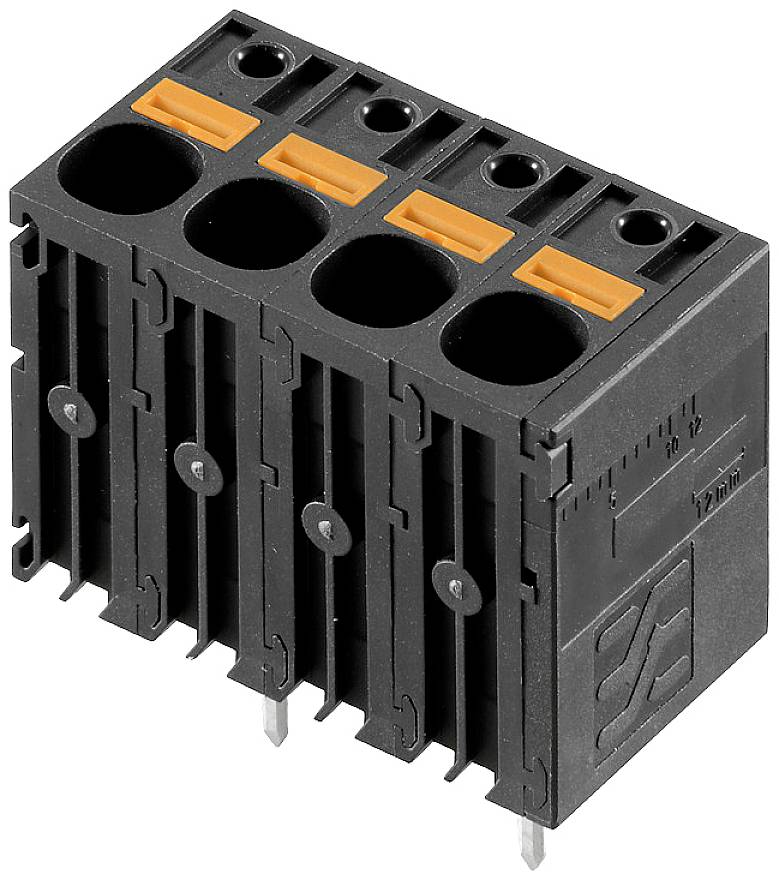

Weidmüller 2491680000 Screw terminal 6 mm² Number of pins 8 Black 30 pc(s)
Product type
Screw terminal
CS
7.5 mm
Pins per row
8
Number of pins
8
Connection
Print
Push-in connector
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Content 30 pc(s)
Our service for you
Technical specifications
- Type
LLFS 7.50/08/180V 5.0SN BK BX
- Product type
Screw terminal
- CS
7.5 mm
- No. of rows
1
- Pins per row
8
- Number of pins
8
- Series
LL
- Min. stripping length
12 mm
- Stripping length (max.)
12 mm
- Connection
Print
Push-in connector
- Nominal current
37 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
37 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- Connector orientation
Perpendicular (to the PCB)
- AWG max.
8
- Contact material
Cathode copper, tin plated
- Factory colour
Black
- Weight
28.82 g
- Manufacturer part #
2491680000
- Content
30 pc(s)
- Nominal voltage
600 V
- Width
61.8 mm
- Height
29.15 mm
- Length
18.5 mm
- Type
LLFS 7.50/08/180V 5.0SN BK BX
- UKCA
not relevant
