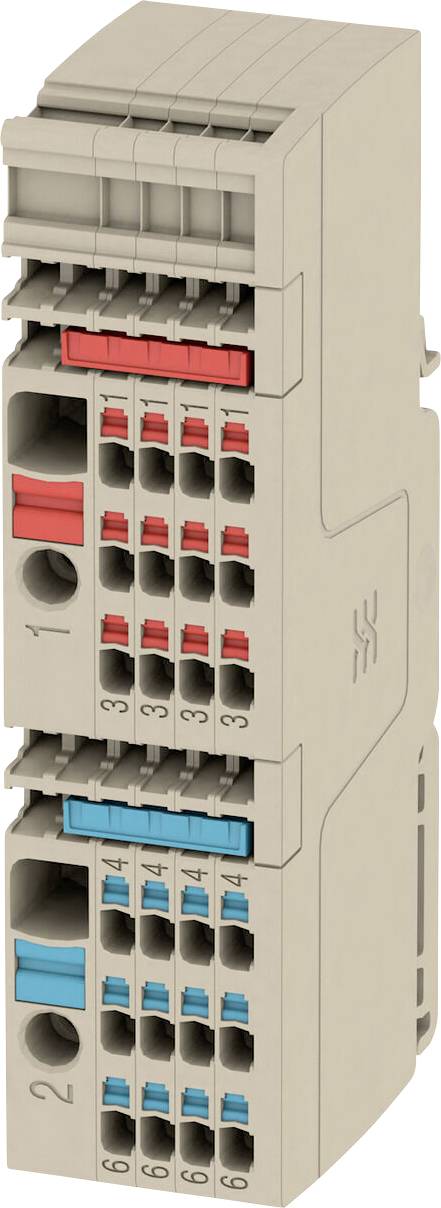

Weidmüller 2506340000 Distributor serial terminal 24.5 mm Pull spring Beige 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Distributor serial terminal
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Number
Total (€ 30.99 / piece)
€ 30.99
incl. VAT
14-day return policy included
Highlights & Details
Distributor serial terminal
- SET AAP13 6/1.5/12C
Technical specifications
- Packaging type
Piece
- Product type
Distributor serial terminal
- Features
+ push-in spring bracket
- Connection
Pull spring
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
22
- AWG max.
8
- Clamp width
24.5 mm
- No. of rows
1
- Pins per row
9
- Number of pins
9
- Factory colour
Beige
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
500 V
- Stripping length (max.)
12 mm
- Manufacturer part #
2506340000
- Content
1 pc(s)
- Type
SET AAP13 6/1.5/12C
- Dim
(L x W x H) 47 x 24.50 x 96 mm
- Width
24.50 mm
- Height
96 mm
- Length
47 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Red
- Insulation material
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1695300 Weidmüller 2506340000 Distributor serial terminal 24.5 mm Pull spring Beige 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1695300 Weidmüller 2506340000 Distributor serial terminal 24.5 mm Pull spring Beige 1 pc(s) Piece
