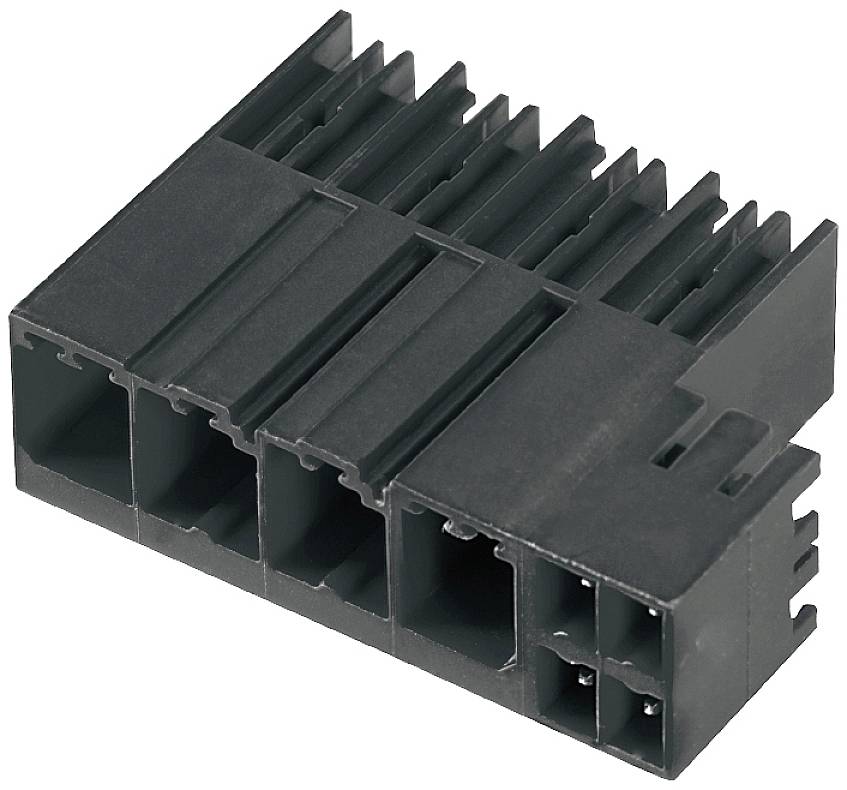

Weidmüller 2529130000 PCB connector Total number of pins 5 30 pc(s)
Product type
PCB connector
Total no. of pins
5
CS
7.62 mm
Content
30 pc(s)
Total number of pins
5
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total number of pins 5
- Content 30 pc(s)
Our service for you
Technical specifications
- Depth: 28.3 mm
- PCB mounting: THT/THR solder connection
- Number of solder pins per pin: 2
- Mounting hole diameter 1.4 mm
- INSULATING MATERIAL: PA GF HT3
- Storage temperature: -25 °C to +55 °C.
- Creepage distance min.: 9.6 mm
- Air distance min.: 6.9 mm
- Touch protection: IP20
- Plug power/pole 12 N.
- Pulling power/pole: 7 N.
- Short-term current strength: 3 x 1s with 420 A.
- Soldering pin length 2.6 mm
- Product type
PCB connector
- Total no. of pins
5
- Total number of pins
5
- CS
7.62 mm
- Nominal current
33 A
- Nominal current - rounded value
33 A
- Connection
THT
THR
Soldering
- Factory colour
Black
- Case material
PA
- Manufacturer part #
2529130000
- Content
30 pc(s)
- Contact material
Copper
- Max. temperature
+130 °C
- Min. temperature
-50 °C
- Type
SV-SMT 7.62HP/05/90G SC/8 2.6SN BX
- Resistance
2 mΩ
- Insulation resistance
100 MΩ
- Connector contact surface
Tin plated
- Nominal voltage
600 V
- Number of pins
5
- RoHS-compliant
Yes
- Mating cycles
25
- Pin length
2.6 mm
- UKCA
not relevant
