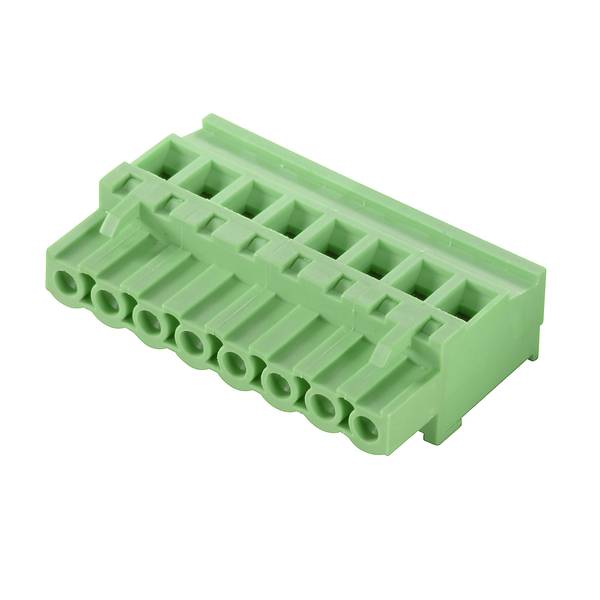

Weidmüller 2647080000 PCB connector Total number of pins 8 1 pc(s) Box
Product type
PCB connector
Total no. of pins
8
Connector type
Socket
CS
5.08 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB connector (conductor connection), 320 V, 22 A, pitch in mm: 5.08, 4 mm², pin number: 8, bracket connection, box
- Content 1 pc(s)
Technical specifications
- Packaging type
Box
- Product type
PCB connector
- Total no. of pins
8
- Connector type
Socket
- Connector orientation
Parallel (to the PCB)
- CS
5.08 mm
- Connection
Screws
- Factory colour
Green
- Case material
Plastic
- Manufacturer part #
2647080000
- Content
1 pc(s)
- Contact material
Copper alloy tin plated
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
CPS 5.08/08/90 SN GN BX
- Connector contact surface
Tin
- Nominal voltage
320 V
- Number of pins
8
- Cross section
4 mm²
Flexible PCB-connector
Green
320 V
8
Bus
Plastic
Uncoated
-40-105 °C
4 kV
6021
Screw connection
Tin
III
2
Tubular cable
5.08 mm
5.08 mm
0.2-4 mm²
0.2-2.5 mm²
0.2-2.5 mm²
0.12-4 mm²
Polyamide (PA)
Other copper alloys
180° (horizontal)
V0
Documents & Downloads
Datasheet
Datasheet 3767308 Weidmüller 2647080000 PCB connector Total number of pins 8 1 pc(s) Box
User & Safety Instructions
User & Safety Instructions 3767308 Weidmüller 2647080000 PCB connector Total number of pins 8 1 pc(s) Box
Description
Pluggable PCB connection with innovative connection technology for safe and intuitive use.
