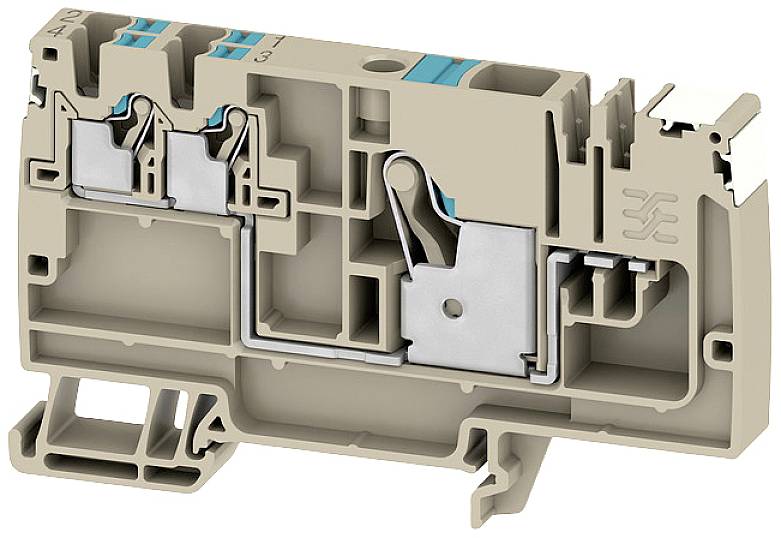

Weidmüller 2675530000 Distributor serial terminal 10 mm Jack connector Beige 20 pc(s) Package
Packaging type
Package
Product type
Distributor serial terminal
Connection
Jack connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
EAN:
Part number:
Item no:
Highlights & Details
- AAP12 10/4X2.5 LO-LI DL BL
Technical specifications
- Packaging type
Package
- Product type
Distributor serial terminal
- Features
Explosion-proof
- Connection
Jack connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Clamp width
10 mm
- No. of rows
1
- Pins per row
5
- Factory colour
Beige
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
800 V
- Manufacturer part #
2675530000
- Content
20 pc(s)
- Type
AAP12 10/4X2.5 LO-LI DL BL
- Dim
(L x W x H) 89 x 10 x 89 mm
- Width
10 mm
- Height
89 mm
- Length
89 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Beige
- Insulation material
Thermoplastic
- UKCA
not relevant
